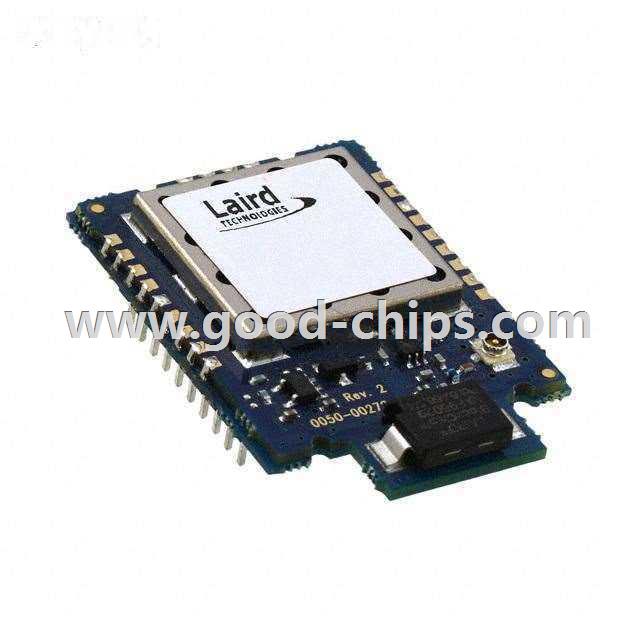

Manufacturer Part Number: | RM024-P125-M-01 |
---|---|
Manufacturer: | Laird - Embedded Wireless Solutions |
Product Category: | RF Transceiver Modules |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | RF TXRX MODULE ISM>1GHZ CHIP ANT |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | Obsolete / Discontinued |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | RM024-P125-M-01 Datasheet |
Internal Part Number | 898-RM024-P125-M-01 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Other Related Documents | RM024 Firmware 3.0 Release Notes RM024 Part Numbers and Firmware | |
Design Resources | Development Tool Selector IoT Product Selector | |
Category | RF/IF and RFID | |
Family | RF Transceiver Modules | |
Manufacturer | Laird - Embedded Wireless Solutions | |
Series | - | |
Packaging | Bulk | |
Part Status | Obsolete | |
RF Family/Standard | General ISM > 1GHZ | |
Protocol | RAMP | |
Modulation | FHSS, MSK | |
Frequency | 2.4GHz | |
Data Rate | 500kbps | |
Power - Output | 21dBm | |
Sensitivity | -95dBm | |
Serial Interfaces | UART | |
Antenna Type | Integrated, Chip | |
Memory Size | - | |
Voltage - Supply | 2.3 V ~ 3.6 V | |
Current - Receiving | 9.5mA ~ 36mA | |
Current - Transmitting | 40mA ~ 166mA | |
Mounting Type | Through Hole | |
Operating Temperature | -40°C ~ 85°C | |
Package / Case | Module | |
Standard Package | 105 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | RM024-P125-M-01 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
RM024-P125-M-01 is in stock for immediate shipping now. We are the distributor of Laird - Embedded Wireless Solutions all series components. The condition of RM024-P125-M-01 is new and unused, you can buy RM024-P125-M-01 Laird - Embedded Wireless Solutions with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for RM024-P125-M-01.
