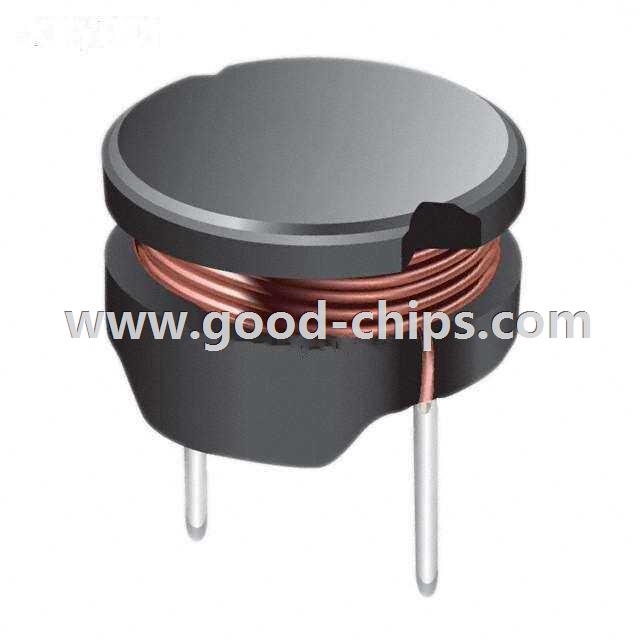

RL855-100M

RL855-100M
Manufacturer Part Number:RL855-100M
Manufacturer:
Product Category:Fixed Inductors
Available Quantity:9010 Pieces
Unit Price:Quote by Email
Description:10µH Unshielded Wirewound Inductor 2.5A 70 mOhm Max Radial
Lead Free Status / RoHS Status:Contains lead / RoHS non-compliant
Moisture Sensitivity Level (MSL):1 (Unlimited)
Production Status (Lifecycle):Obsolete / Discontinued
Delivery Time:1-2 Days
Date Code (D/C):New
Datasheet Download: RL855-100M Datasheet
RL855-100M´s Parameters
Internal Part Number898-RL855-100M
Manufacturer Lead time6-8 weeks
ConditionNew & Unused, Original Sealed
CategoryInductors, Coils, Chokes
FamilyFixed Inductors
ManufacturerBourns Inc.
SeriesRL855
PackagingBulk
Part StatusObsolete
TypeWirewound
Material - CoreFerrite
Inductance10µH
Tolerance±20%
Current Rating2.5A
Current - Saturation-
ShieldingUnshielded
DC Resistance (DCR)70 mOhm Max
Q @ Freq-
Frequency - Self Resonant-
Ratings-
Operating Temperature-30°C ~ 100°C
Frequency - Test2.52MHz
Mounting TypeThrough Hole
Package / CaseRadial
Size / Dimension0.307" Dia (7.80mm)
Height - Seated (Max)0.217" (5.50mm)
Standard Package 100
Weight0.001 KG
ApplicationEmail for details
Replacement PartRL855-100M
Country of OriginUSA / JAPAN / Philippines / Malaysia
MOQ1 Piece
Picture / Image / PhotoSend via email

RL855-100M is in stock for immediate shipping now. We are the distributor of Bourns Inc. all series components. The condition of RL855-100M is new and unused, you can buy RL855-100M Bourns Inc. with us at a very low price and quick delivery.

Please kindly send us an email if you have any demands for RL855-100M.
