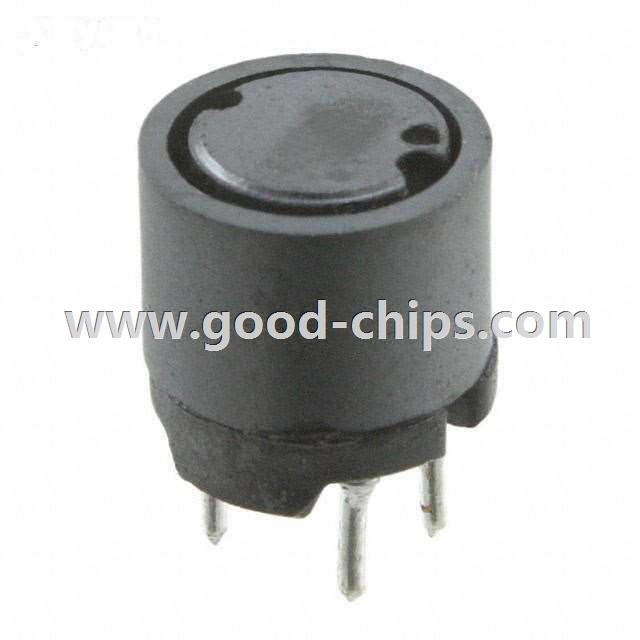

Manufacturer Part Number: | RL110S-101L-RC |
---|---|
Manufacturer: | Bourns Inc. |
Product Category: | Fixed Inductors |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | 100µH Shielded Wirewound Inductor 1.2A 190 mOhm Max Radial - 4 Leads |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | Obsolete / Discontinued |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | RL110S-101L-RC Datasheet |
Internal Part Number | 898-RL110S-101L-RC | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
PCN Obsolescence/ EOL | RL110S SeriesFeb/2014 | |
PCN Assembly/Origin | Magnetic products Oct/2013 | |
Category | Inductors, Coils, Chokes | |
Family | Fixed Inductors | |
Manufacturer | Bourns Inc. | |
Series | RL110S | |
Packaging | Bulk | |
Part Status | Obsolete | |
Type | Wirewound | |
Material - Core | Ferrite | |
Inductance | 100µH | |
Tolerance | ±15% | |
Current Rating | 1.2A | |
Current - Saturation | - | |
Shielding | Shielded | |
DC Resistance (DCR) | 190 mOhm Max | |
Q @ Freq | 30 @ 790kHz | |
Frequency - Self Resonant | 4.4MHz | |
Ratings | - | |
Operating Temperature | -30°C ~ 100°C | |
Frequency - Test | 1kHz | |
Mounting Type | Through Hole | |
Package / Case | Radial - 4 Leads | |
Size / Dimension | 0.394" Dia (10.00mm) | |
Height - Seated (Max) | 0.413" (10.50mm) | |
Standard Package | 100 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | RL110S-101L-RC | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
RL110S-101L-RC is in stock for immediate shipping now. We are the distributor of Bourns Inc. all series components. The condition of RL110S-101L-RC is new and unused, you can buy RL110S-101L-RC Bourns Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for RL110S-101L-RC.
