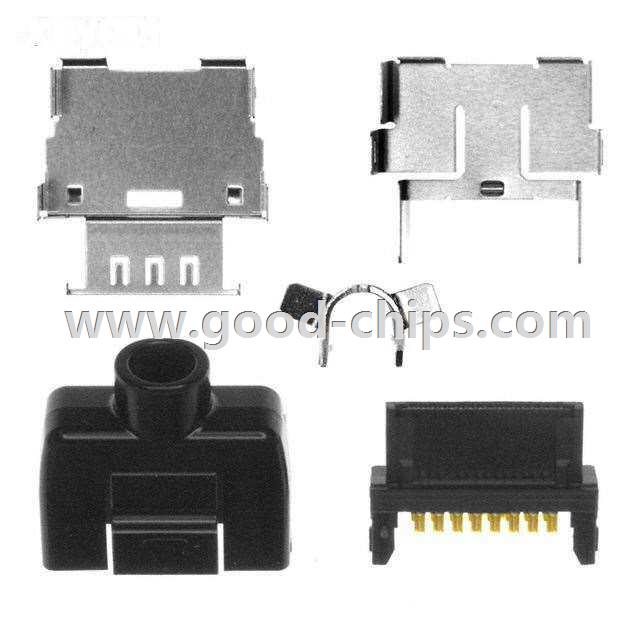

Manufacturer Part Number: | RL01S-P16S-C5E |
---|---|
Manufacturer: | JAE Electronics |
Product Category: | Rectangular Connectors - Free Hanging, Panel Mount |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | 16 Position Rectangular Plug Connector Solder Gold 26-30 AWG |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | Obsolete / Discontinued |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | RL01S-P16S-C5E Datasheet |
Internal Part Number | 898-RL01S-P16S-C5E | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Category | Connectors, Interconnects | |
Family | Rectangular Connectors - Free Hanging, Panel Mount | |
Manufacturer | JAE Electronics | |
Series | RL01/RL01S/RL02S | |
Packaging | Tray | |
Part Status | Obsolete | |
Connector Type | Plug | |
Contact Type | Male Pin | |
Number of Positions | 16 | |
Pitch | 0.031" (0.80mm) | |
Number of Rows | 1 | |
Row Spacing | - | |
Mounting Type | Free Hanging (In-Line) | |
Fastening Type | - | |
Cable Termination | Solder | |
Wire Type | Discrete | |
Wire Gauge | 26-30 AWG | |
Features | - | |
Contact Finish | Gold | |
Contact Finish Thickness | Flash | |
Color | Black | |
Standard Package | 1,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | RL01S-P16S-C5E | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
RL01S-P16S-C5E is in stock for immediate shipping now. We are the distributor of JAE Electronics all series components. The condition of RL01S-P16S-C5E is new and unused, you can buy RL01S-P16S-C5E JAE Electronics with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for RL01S-P16S-C5E.
