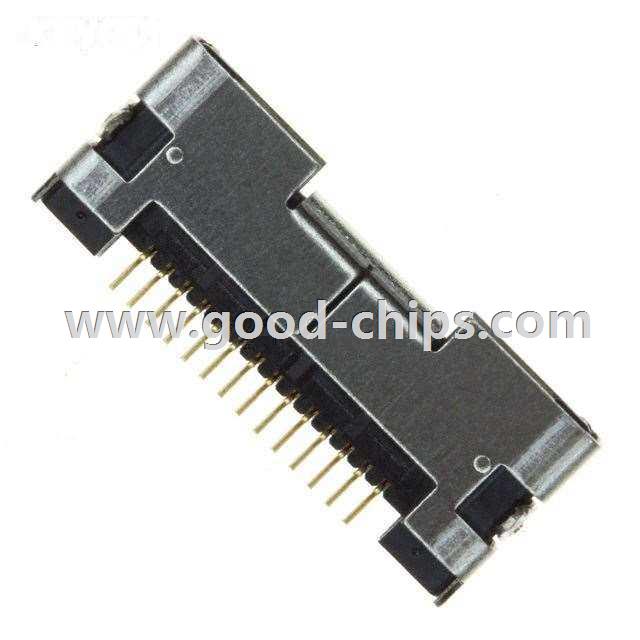

| Manufacturer Part Number: | RL01-R14PE |
|---|---|
| Manufacturer: | JAE Electronics |
| Product Category: | Rectangular Connectors - Headers, Receptacles, Female Sockets |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 14 Position Receptacle Connector 0.031" (0.80mm) Surface Mount, Right Angle Gold |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | RL01-R14PE Datasheet |
| Internal Part Number | 898-RL01-R14PE | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Connectors, Interconnects | |
| Family | Rectangular Connectors - Headers, Receptacles, Female Sockets | |
| Manufacturer | JAE Electronics | |
| Series | RL01/RL01S/RL02S | |
| Packaging | Tray | |
| Part Status | Obsolete | |
| Connector Type | Receptacle | |
| Contact Type | Center Strip Contact | |
| Number of Positions | 14 | |
| Number of Positions Loaded | All | |
| Pitch | 0.031" (0.80mm) | |
| Number of Rows | 1 | |
| Row Spacing | - | |
| Mounting Type | Surface Mount, Right Angle | |
| Termination | Solder | |
| Fastening Type | - | |
| Features | Board Guide | |
| Contact Finish | Gold | |
| Contact Finish Thickness | - | |
| Color | - | |
| Standard Package | 171 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | RL01-R14PE | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
RL01-R14PE is in stock for immediate shipping now. We are the distributor of JAE Electronics all series components. The condition of RL01-R14PE is new and unused, you can buy RL01-R14PE JAE Electronics with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for RL01-R14PE.
