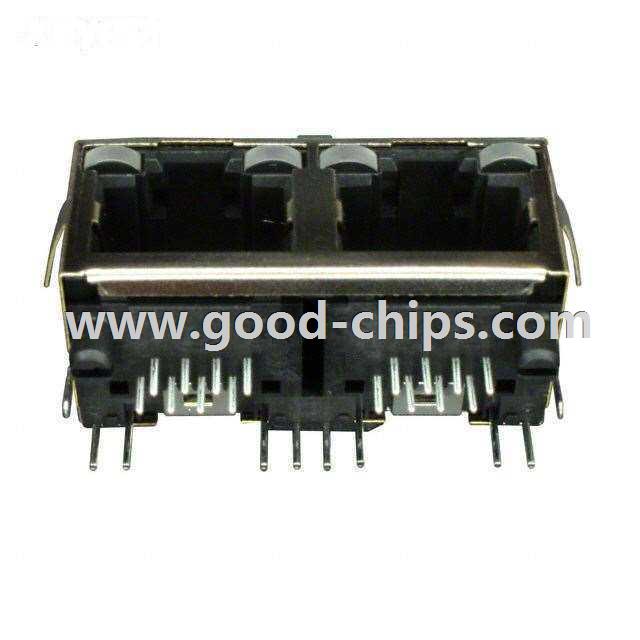

| Manufacturer Part Number: | RJHSE538B02 |
|---|---|
| Manufacturer: | Amphenol Commercial Products |
| Product Category: | Modular Connectors - Jacks |
| Available Quantity: | 9303 Pieces |
| Unit Price: | Quote by Email |
| Description: | Jack Modular Connector 8p8c (RJ45, Ethernet) 90° Angle (Right) Shielded, EMI Finger |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | RJHSE538B02 Datasheet |
| Internal Part Number | 898-RJHSE538B02 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Featured Product | Modular Jacks Product Solutions Data Center Solutions | |
| 3D Model | RJHSEx38x02.stp RJHSEx38x02.igs | |
| PCN Design/Specification | RJHSE Shield Material 30/Jun/2015 | |
| Online Catalog | RJHSE Series | |
| Category | Connectors, Interconnects | |
| Family | Modular Connectors - Jacks | |
| Manufacturer | Amphenol Commercial Products | |
| Series | RJHSE | |
| Packaging | Tray | |
| Part Status | Active | |
| Connector Type | Jack | |
| Number of Positions/Contacts | 8p8c (RJ45, Ethernet) | |
| Number of Ports | 2 | |
| Number of Rows | 1 | |
| Mounting Type | Through Hole | |
| Orientation | 90° Angle (Right) | |
| Termination | Solder | |
| Shielding | Shielded, EMI Finger | |
| Ratings | - | |
| Features | Board Lock | |
| LED Color | Red, Green - Red, Green | |
| Ingress Protection | - | |
| Tab Direction | Up | |
| Contact Material | Phosphor Bronze | |
| Contact Finish | Gold | |
| Contact Finish Thickness | 50µin (1.27µm) | |
| Housing Material | Thermoplastic | |
| Operating Temperature | -55°C ~ 85°C | |
| Standard Package | 56 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | RJHSE538B02 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
RJHSE538B02 is in stock for immediate shipping now. We are the distributor of Amphenol Commercial Products all series components. The condition of RJHSE538B02 is new and unused, you can buy RJHSE538B02 Amphenol Commercial Products with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for RJHSE538B02.
