| Manufacturer Part Number: | RJ5EW501 |
|---|---|
| Manufacturer: | Copal Electronics Inc. |
| Product Category: | Trimmer Potentiometers |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |

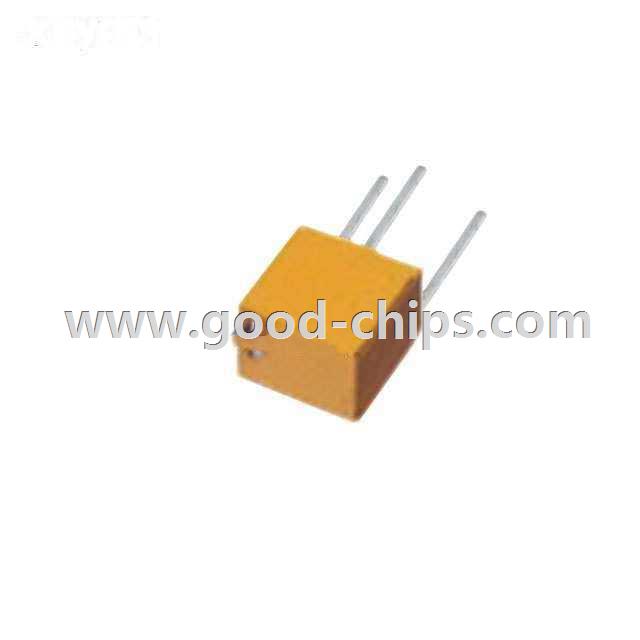

| Description: | 500 Ohm 0.25W, 1/4W PC Pins Through Hole Trimmer Potentiometer Cermet 14 Turn Top Adjustment |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | RJ5EW501 Datasheet |
| Internal Part Number | 898-RJ5EW501 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | 3D CAD Models | |
| 3D Model | RJ5EW501 | |
| Category | Potentiometers, Variable Resistors | |
| Family | Trimmer Potentiometers | |
| Manufacturer | Copal Electronics Inc. | |
| Series | RJ-5 | |
| Packaging | Bulk | |
| Part Status | Active | |
| Resistance (Ohms) | 500 | |
| Power (Watts) | 0.25W, 1/4W | |
| Tolerance | ±10% | |
| Temperature Coefficient | ±100ppm/°C | |
| Number of Turns | 14 | |
| Adjustment Type | Top Adjustment | |
| Resistive Material | Cermet | |
| Mounting Type | Through Hole | |
| Termination Style | PC Pins | |
| Size / Dimension | Square - 0.236" L x 0.169" W x 0.266" H (6.00mm x 4.30mm x 6.75mm) | |
| Standard Package | 200 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | RJ5EW501 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
RJ5EW501 is in stock for immediate shipping now. We are the distributor of Copal Electronics Inc. all series components. The condition of RJ5EW501 is new and unused, you can buy RJ5EW501 Copal Electronics Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for RJ5EW501.
