Manufacturer Part Number: | RI-80SMD0515-G2 |
---|---|
Manufacturer: | Coto Technology |
Product Category: | Magnetic, Reed Switches |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |

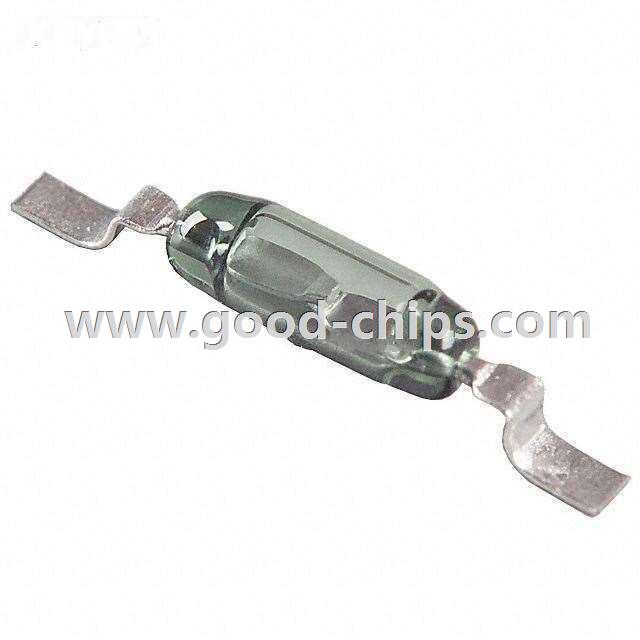

Description: | Glass Body Reed Switch SPST-NO 5 ~ 15AT Operate Range 5W 250mA (AC), 350mA (DC) 140V Surface Mount |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | Obsolete / Discontinued |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | RI-80SMD0515-G2 Datasheet |
Internal Part Number | 898-RI-80SMD0515-G2 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Category | Switches | |
Family | Magnetic, Reed Switches | |
Manufacturer | Coto Technology | |
Series | RI-80 | |
Packaging | Tape & Reel (TR) | |
Part Status | Obsolete | |
Type | Glass Body | |
Circuit | SPST-NO | |
Operate Range | 5 ~ 15AT | |
Release Range | 2 ~ 13AT | |
Current - Switching | 250mA (AC), 350mA (DC) | |
Voltage - Switching AC | 140V | |
Voltage - Switching DC | 175V | |
Power - Rated | 5W | |
Operate Time | 0.35ms | |
Release Time | 0.02ms | |
Mounting Type | Surface Mount | |
Termination Style | Gull Wing | |
Length - Overall | 0.400" (10.16mm) | |
Size - Body | 0.071" Dia x 0.197" L (1.80mm x 5.00mm) | |
Height Above Board | 0.076" (1.92mm) | |
Operating Temperature | -55°C ~ 125°C | |
Capacitance | 0.45pF | |
Current - Carry | 500mA (AC/DC) | |
Standard Package | 7,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | RI-80SMD0515-G2 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
RI-80SMD0515-G2 is in stock for immediate shipping now. We are the distributor of Coto Technology all series components. The condition of RI-80SMD0515-G2 is new and unused, you can buy RI-80SMD0515-G2 Coto Technology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for RI-80SMD0515-G2.
