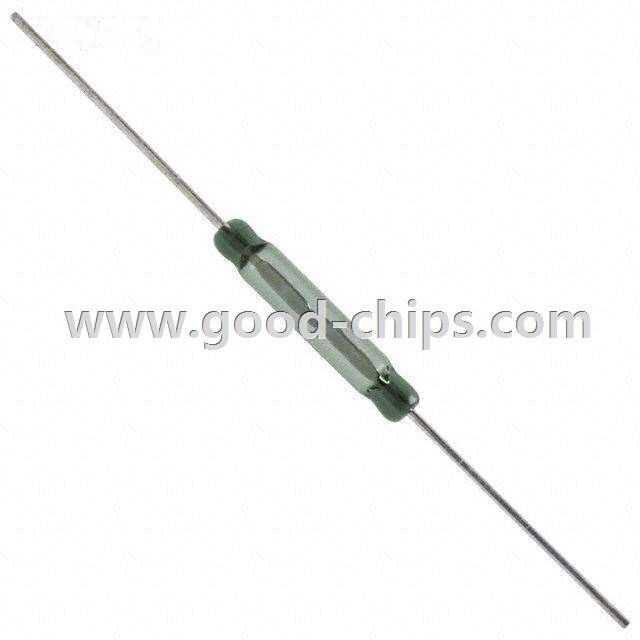

| Manufacturer Part Number: | RI-21A |
|---|---|
| Manufacturer: | Coto Technology |
| Product Category: | Magnetic, Reed Switches |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Glass Body Reed Switch SPST-NO 18 ~ 32AT Operate Range 10W 500mA (AC/DC) 250V Through Hole |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | RI-21A Datasheet |
| Internal Part Number | 898-RI-21A | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Switches | |
| Family | Magnetic, Reed Switches | |
| Manufacturer | Coto Technology | |
| Series | RI-21 | |
| Packaging | Bulk | |
| Part Status | Obsolete | |
| Type | Glass Body | |
| Circuit | SPST-NO | |
| Operate Range | 18 ~ 32AT | |
| Release Range | 8 ~ 22AT | |
| Current - Switching | 500mA (AC/DC) | |
| Voltage - Switching AC | 250V | |
| Voltage - Switching DC | 200V | |
| Power - Rated | 10W | |
| Operate Time | 0.25ms | |
| Release Time | 0.03ms | |
| Mounting Type | Through Hole | |
| Termination Style | Axial | |
| Length - Overall | 1.811" (46.00mm) | |
| Size - Body | 0.100" Dia x 0.570" L (2.54mm x 14.50mm) | |
| Height Above Board | - | |
| Operating Temperature | -55°C ~ 125°C | |
| Capacitance | 0.25pF | |
| Current - Carry | 2.5A (AC/DC) | |
| Standard Package | 2,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | RI-21A | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
RI-21A is in stock for immediate shipping now. We are the distributor of Coto Technology all series components. The condition of RI-21A is new and unused, you can buy RI-21A Coto Technology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for RI-21A.
