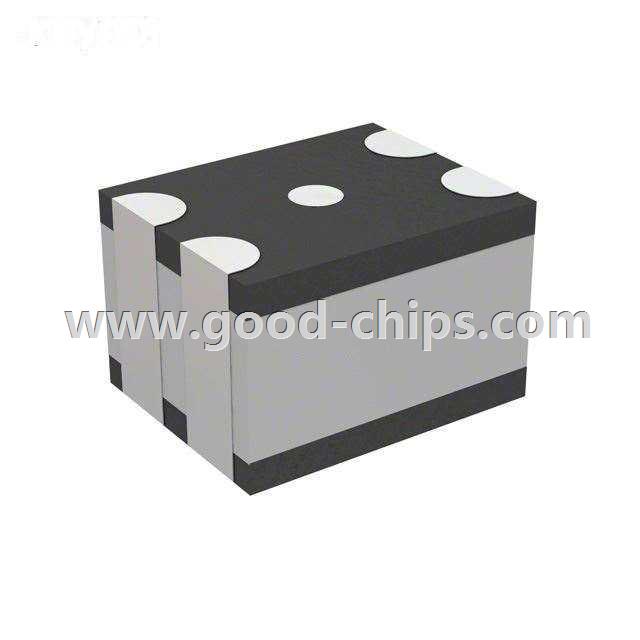

| Manufacturer Part Number: | RGCMF1210121H4T |
|---|---|
| Manufacturer: | Walsin Technology Corporation |
| Product Category: | Common Mode Chokes |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 2 Line Common Mode Choke Surface Mount 120 Ohm @ 100MHz 300mA DCR 1.2 Ohm |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | RGCMF1210121H4T Datasheet |
| Internal Part Number | 898-RGCMF1210121H4T | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Filters | |
| Family | Common Mode Chokes | |
| Manufacturer | Walsin Technology Corporation | |
| Series | RGCMF | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Filter Type | Signal Line | |
| Number of Lines | 2 | |
| Impedance @ Frequency | 120 Ohm @ 100MHz | |
| Inductance @ Frequency | - | |
| Current Rating (Max) | 300mA | |
| DC Resistance (DCR) (Max) | 1.2 Ohm | |
| Voltage Rating - DC | - | |
| Voltage Rating - AC | - | |
| Operating Temperature | -40°C ~ 85°C | |
| Ratings | - | |
| Approvals | - | |
| Features | - | |
| Mounting Type | Surface Mount | |
| Size / Dimension | 0.049" L x 0.039" W (1.25mm x 1.00mm) | |
| Height (Max) | 0.035" (0.90mm) | |
| Package / Case | 0504 (1210 Metric), 4 Lead | |
| Standard Package | 2,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | RGCMF1210121H4T | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
RGCMF1210121H4T is in stock for immediate shipping now. We are the distributor of Walsin Technology Corporation all series components. The condition of RGCMF1210121H4T is new and unused, you can buy RGCMF1210121H4T Walsin Technology Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for RGCMF1210121H4T.
