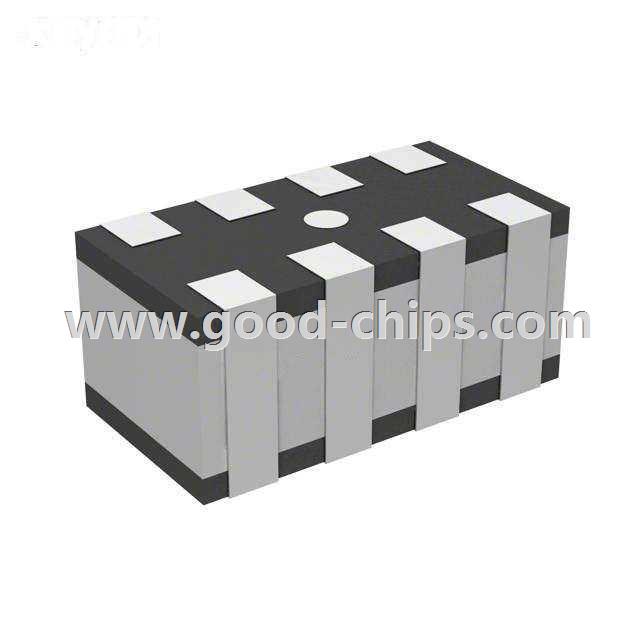

| Manufacturer Part Number: | RGCMA2010090V3T |
|---|---|
| Manufacturer: | Walsin Technology Corporation |
| Product Category: | Common Mode Chokes |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 4 Line Common Mode Choke Surface Mount 120 Ohm @ 100MHz 300mA DCR 1.3 Ohm |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | RGCMA2010090V3T Datasheet |
| Internal Part Number | 898-RGCMA2010090V3T | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | RGCMA Series | |
| Category | Filters | |
| Family | Common Mode Chokes | |
| Manufacturer | Walsin Technology Corporation | |
| Series | RGCMA | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Filter Type | Signal Line | |
| Number of Lines | 4 | |
| Impedance @ Frequency | 120 Ohm @ 100MHz | |
| Inductance @ Frequency | - | |
| Current Rating (Max) | 300mA | |
| DC Resistance (DCR) (Max) | 1.3 Ohm | |
| Voltage Rating - DC | - | |
| Voltage Rating - AC | - | |
| Operating Temperature | -40°C ~ 85°C | |
| Ratings | - | |
| Approvals | - | |
| Features | - | |
| Mounting Type | Surface Mount | |
| Size / Dimension | 0.079" L x 0.043" W (2.00mm x 1.05mm) | |
| Height (Max) | 0.039" (1.00mm) | |
| Package / Case | 0804 (2010 Metric), 8 Lead | |
| Standard Package | 2,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | RGCMA2010090V3T | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
RGCMA2010090V3T is in stock for immediate shipping now. We are the distributor of Walsin Technology Corporation all series components. The condition of RGCMA2010090V3T is new and unused, you can buy RGCMA2010090V3T Walsin Technology Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for RGCMA2010090V3T.
