| Manufacturer Part Number: | RFDIP1608060L3T |
|---|---|
| Manufacturer: | Walsin Technology Corporation |
| Product Category: | RF Diplexers |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |

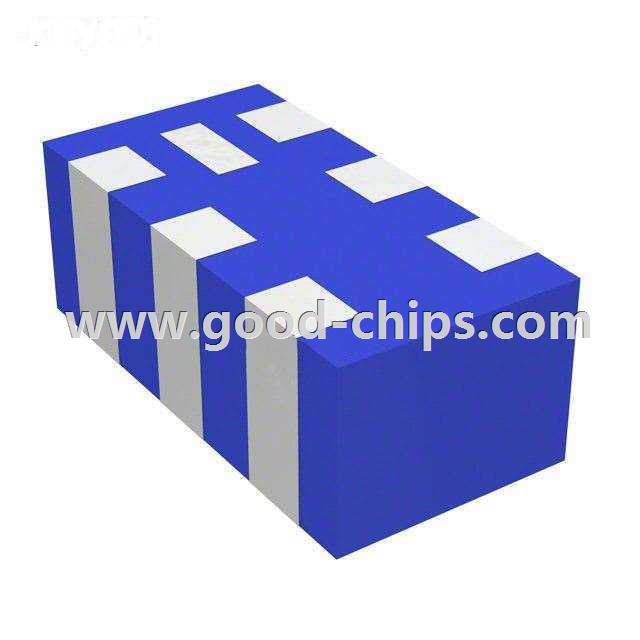

| Description: | RF Diplexor 2.4GHz ~ 2.5GHz / 4.9GHz ~ 5.9GHz 0603 (1608 Metric), 6 PC Pad |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | RFDIP1608060L3T Datasheet |
| Internal Part Number | 898-RFDIP1608060L3T | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | IoT Product Selector | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Category | RF/IF and RFID | |
| Family | RF Diplexers | |
| Manufacturer | Walsin Technology Corporation | |
| Series | RFDIP | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Frequency Bands (Low / High) | 2.4GHz ~ 2.5GHz / 4.9GHz ~ 5.9GHz | |
| Low Band Attenuation (min / max dB) | 18.00dB / - | |
| High Band Attenuation (min / max dB) | 20.00dB / - | |
| Return Loss (Low Band / High Band) | - | |
| Mounting Type | Surface Mount | |
| Package / Case | 0603 (1608 Metric), 6 PC Pad | |
| Standard Package | 4,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | RFDIP1608060L3T | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
RFDIP1608060L3T is in stock for immediate shipping now. We are the distributor of Walsin Technology Corporation all series components. The condition of RFDIP1608060L3T is new and unused, you can buy RFDIP1608060L3T Walsin Technology Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for RFDIP1608060L3T.
