| Manufacturer Part Number: | RF5500 |
|---|---|
| Manufacturer: | RFMD |
| Product Category: | RF Switches |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | RF Switch IC 802.11b/g/n SP3T 2.5GHz 50 Ohm 8-DFN (2x2) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | RF5500 Datasheet |
| Internal Part Number | 898-RF5500 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | IoT Product Selector | |
| Category | RF/IF and RFID | |
| Family | RF Switches | |
| Manufacturer | RFMD | |
| Series | - | |
| Packaging | Tube | |
| Part Status | Last Time Buy | |
| Frequency - Lower | 2.4GHz | |
| Frequency - Upper | 2.5GHz | |
| Isolation @ Frequency | 18dB @ 2.5GHz (typ) | |
| Insertion Loss @ Frequency | 3.8dB @ 2.5GHz | |
| IIP3 | - | |
| Topology | - | |
| Circuit | SP3T | |
| P1dB | 28dBm | |
| Features | - | |
| Impedance | 50 Ohm | |
| Operating Temperature | -40°C ~ 85°C | |
| Voltage - Supply | 3V | |
| RF Type | 802.11b/g/n | |
| Package / Case | 8-UFDFN Exposed Pad | |

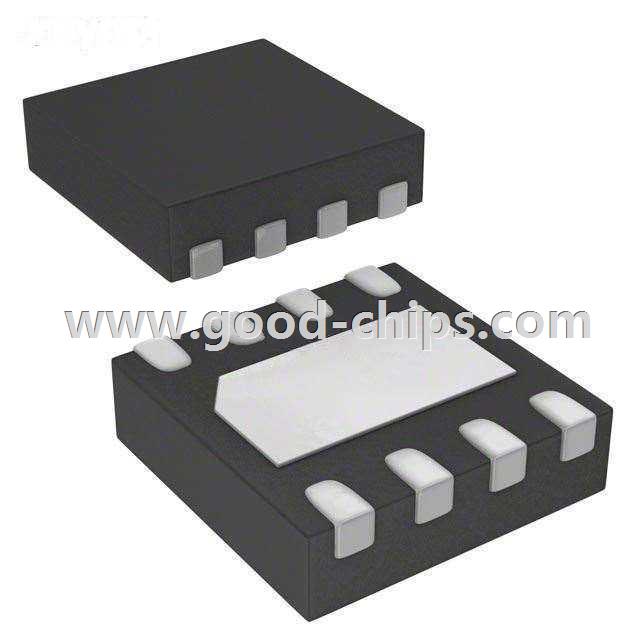

| Supplier Device Package | 8-DFN (2x2) | |
| Standard Package | 25 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | RF5500 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
RF5500 is in stock for immediate shipping now. We are the distributor of RFMD all series components. The condition of RF5500 is new and unused, you can buy RF5500 RFMD with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for RF5500.
