Manufacturer Part Number: | RF4E075ATTCR |
---|---|
Manufacturer: | Rohm Semiconductor |
Product Category: | Transistors - FETs, MOSFETs - Single |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | MOSFET P-CH 30V 7.5A 8DFN |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | RF4E075ATTCR Datasheet |
Internal Part Number | 898-RF4E075ATTCR | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | MOSFETs for DC-DC Converter & Load Switch Applications | |
Online Catalog | P-Channel Standard FETs | |
Category | Discrete Semiconductor Products | |
Family | Transistors - FETs, MOSFETs - Single | |
Manufacturer | Rohm Semiconductor | |
Series | - | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
FET Type | MOSFET P-Channel, Metal Oxide | |
FET Feature | Standard | |
Drain to Source Voltage (Vdss) | 30V | |
Current - Continuous Drain (Id) @ 25°C | 7.5A (Ta) | |
Rds On (Max) @ Id, Vgs | 21.7 mOhm @ 7.5A, 10V | |
Vgs(th) (Max) @ Id | 2.5V @ 1mA | |
Gate Charge (Qg) @ Vgs | 22nC @ 10V | |
Input Capacitance (Ciss) @ Vds | 1000pF @ 15V | |
Power - Max | 2W | |
Operating Temperature | 150°C (TJ) | |
Mounting Type | Surface Mount | |

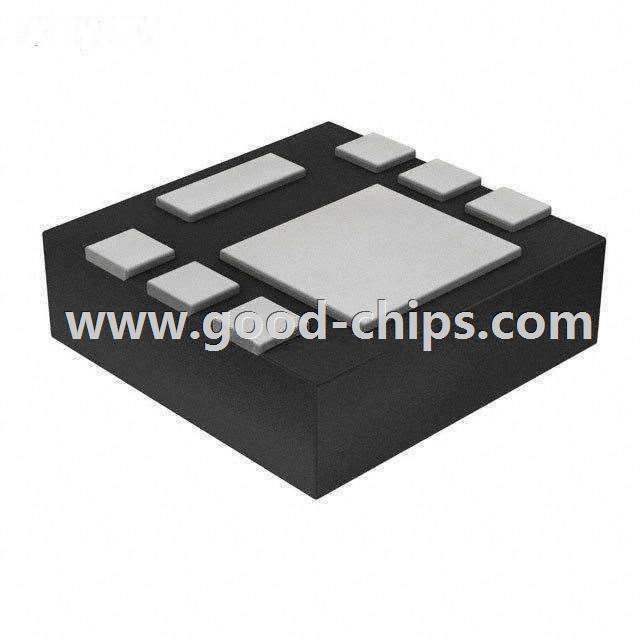

Package / Case | 8-PowerUDFN | |
Supplier Device Package | 6-HUML2020L8 (2x2) | |
Standard Package | 3,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | RF4E075ATTCR | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
RF4E075ATTCR is in stock for immediate shipping now. We are the distributor of Rohm Semiconductor all series components. The condition of RF4E075ATTCR is new and unused, you can buy RF4E075ATTCR Rohm Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for RF4E075ATTCR.
