Manufacturer Part Number: | RF3023TR7 |
---|---|
Manufacturer: | RFMD |
Product Category: | RF Switches |
Available Quantity: | 14010 Pieces |
Unit Price: | Quote by Email |
Description: | RF Switch IC 802.11b/g SPDT 4GHz 50 Ohm SC-70-6 |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | RF3023TR7 Datasheet |
Internal Part Number | 898-RF3023TR7 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Design Resources | IoT Product Selector | |
Featured Product | RF Switches | |
Online Catalog | RF3023 and RF3024 | |
Category | RF/IF and RFID | |
Family | RF Switches | |
Manufacturer | RFMD | |
Series | - | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Frequency - Lower | 300kHz | |
Frequency - Upper | 4GHz | |
Isolation @ Frequency | 27dB @ 3GHz (typ) | |
Insertion Loss @ Frequency | 0.45dB @ 3GHz | |
IIP3 | 58dBm (typ) | |
Topology | Reflective | |
Circuit | SPDT | |
P1dB | 32dBm (typ) P1dB | |
Features | - | |
Impedance | 50 Ohm | |
Operating Temperature | -40°C ~ 85°C | |
Voltage - Supply | - | |
RF Type | 802.11b/g | |

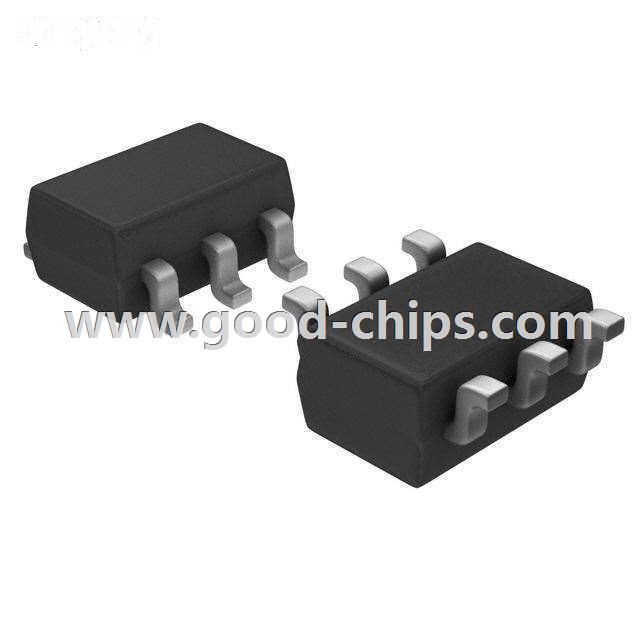

Package / Case | 6-TSSOP, SC-88, SOT-363 | |
Supplier Device Package | SC-70-6 | |
Standard Package | 2,500 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | RF3023TR7 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
RF3023TR7 is in stock for immediate shipping now. We are the distributor of RFMD all series components. The condition of RF3023TR7 is new and unused, you can buy RF3023TR7 RFMD with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for RF3023TR7.
