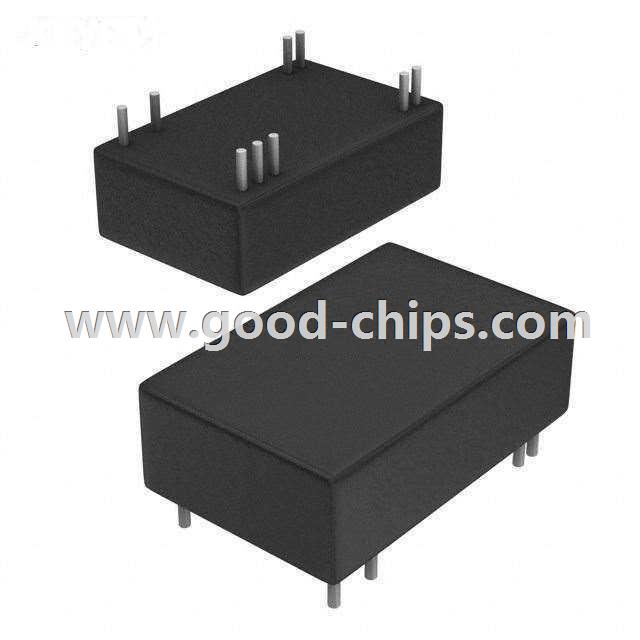

Manufacturer Part Number: | REC3.5-2409DRW/R8/C/X1 |
---|---|
Manufacturer: | Recom Power |
Product Category: | DC DC Converters |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | CONV DC/DC 3.5W 18-36VIN +/-09VO |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | REC3.5-2409DRW/R8/C/X1 Datasheet |
Internal Part Number | 898-REC3.5-2409DRW/R8/C/X1 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | High Isolation Medical Grade DC-DC Converters High Isolation Medical Grade DC-DC Converters | |
Video File | RECOM High Isolation DC DC Converter | Digi-Key Daily RECOM REC Series DC to DC Converters | Digi-Key Daily | |
Category | Power Supplies - Board Mount | |
Family | DC DC Converters | |
Manufacturer | Recom Power | |
Series | ECONOLINE REC3.5/R | |
Packaging | Tube | |
Part Status | Active | |
Type | Isolated Module | |
Number of Outputs | 2 | |
Voltage - Input (Min) | 18V | |
Voltage - Input (Max) | 36V | |
Voltage - Output 1 | 9V | |
Voltage - Output 2 | -9V | |
Voltage - Output 3 | - | |
Current - Output (Max) | 194mA, 194mA | |
Power (Watts) - Manufacture Series | 3.5W | |
Voltage - Isolation | 8kV (8000V) | |
Applications | ITE (Commercial), Medical | |
Features | SCP, UVLO | |
Mounting Type | Through Hole | |
Package / Case | 24-DIP Module (9 Leads) | |
Size / Dimension | 1.26" L x 0.80" W x 0.40" H (32.0mm x 20.3mm x 10.2mm) | |
Operating Temperature | -40°C ~ 85°C | |
Efficiency | 82% | |
Power (Watts) - Max | 3.5W | |
Standard Package | 15 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | REC3.5-2409DRW/R8/C/X1 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
REC3.5-2409DRW/R8/C/X1 is in stock for immediate shipping now. We are the distributor of Recom Power all series components. The condition of REC3.5-2409DRW/R8/C/X1 is new and unused, you can buy REC3.5-2409DRW/R8/C/X1 Recom Power with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for REC3.5-2409DRW/R8/C/X1.
