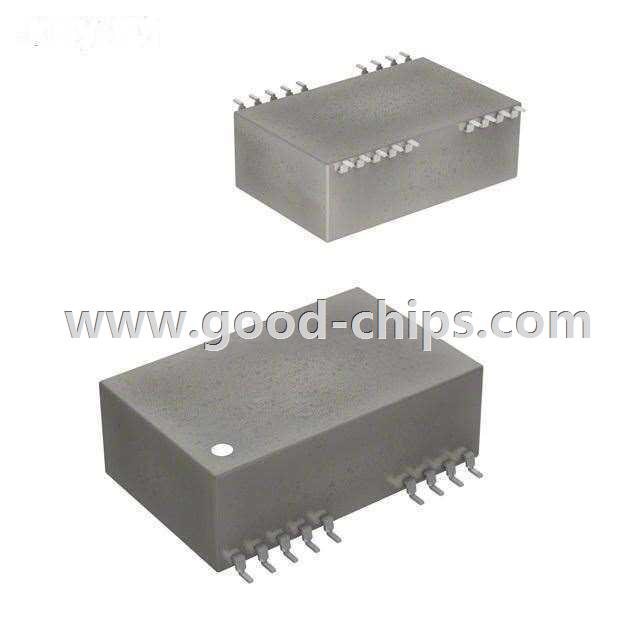

.jpg)
| Manufacturer Part Number: | REC3-0505DR/H1/SMD-R |
|---|---|
| Manufacturer: | Recom Power |
| Product Category: | DC DC Converters |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | CONV DC/DC 3W 5VIN +/-05VOUT |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | REC3-0505DR/H1/SMD-R Datasheet |
| Internal Part Number | 898-REC3-0505DR/H1/SMD-R | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Video File | RECOM REC Series DC to DC Converters | Digi-Key Daily | |
| Category | Power Supplies - Board Mount | |
| Family | DC DC Converters | |
| Manufacturer | Recom Power | |
| Series | ECONOLINE REC3-DR | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Type | Isolated Module | |
| Number of Outputs | 2 | |
| Voltage - Input (Min) | 4.5V | |
| Voltage - Input (Max) | 5.5V | |
| Voltage - Output 1 | 5V | |
| Voltage - Output 2 | -5V | |
| Voltage - Output 3 | - | |
| Current - Output (Max) | 300mA, 300mA | |
| Power (Watts) - Manufacture Series | 3W | |
| Voltage - Isolation | 1kV (1000V) | |
| Applications | ITE (Commercial) | |
| Features | SCP | |
| Mounting Type | Surface Mount | |
| Package / Case | 24-SMD Module (18 Leads) | |
| Size / Dimension | 1.26" L x 0.80" W x 0.44" H (32.0mm x 20.3mm x 11.2mm) | |
| Operating Temperature | -40°C ~ 80°C | |
| Efficiency | 75% | |
| Power (Watts) - Max | 3W | |
| Standard Package | 100 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | REC3-0505DR/H1/SMD-R | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
REC3-0505DR/H1/SMD-R is in stock for immediate shipping now. We are the distributor of Recom Power all series components. The condition of REC3-0505DR/H1/SMD-R is new and unused, you can buy REC3-0505DR/H1/SMD-R Recom Power with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for REC3-0505DR/H1/SMD-R.
