| Manufacturer Part Number: | RDTBR10P1T |
|---|---|
| Manufacturer: | E-Switch |
| Product Category: | DIP Switches |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |

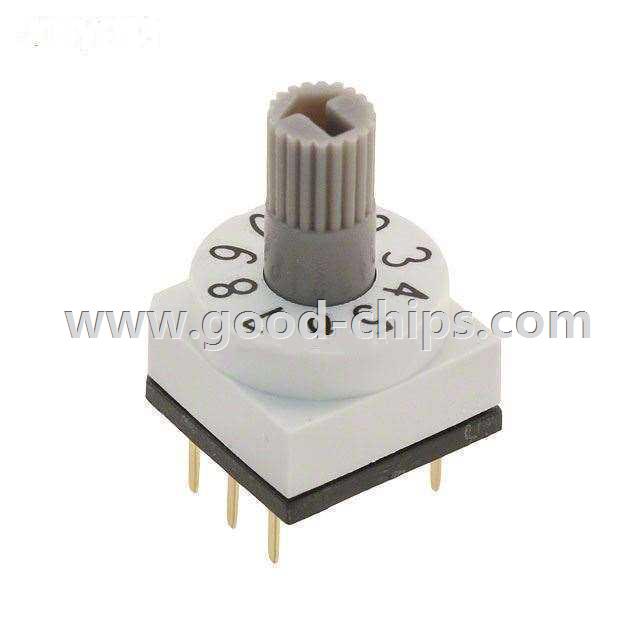

| Description: | Dip Switch BCD 10 Position Through Hole Rotary with Shaft Actuator 150mA 42VDC |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | RDTBR10P1T Datasheet |
| Internal Part Number | 898-RDTBR10P1T | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Featured Product | RDT Series Rotary DIP Switch | |
| 3D Model | RDTBx10P1x.stp | |
| Online Catalog | RDT Series | |
| Category | Switches | |
| Family | DIP Switches | |
| Manufacturer | E-Switch | |
| Series | RDT | |
| Packaging | Tube | |
| Part Status | Active | |
| Circuit | BCD | |
| Number of Positions | 10 | |
| Current Rating | 150mA | |
| Voltage Rating | 42VDC | |
| Actuator Type | Rotary with Shaft | |
| Actuator Level | Raised | |
| Contact Material | - | |
| Contact Finish | Gold | |
| Height Above Board | 0.543" (13.80mm) | |
| Mounting Type | Through Hole | |
| Termination Style | PC Pin | |
| Pitch | 0.100" (2.54mm), Full | |
| Washable | Yes | |
| Features | IP67 - Dust Tight, Waterproof | |
| Body Material | - | |
| Length | 0.393" (10.00mm) | |
| Operating Temperature | -40°C ~ 85°C | |
| Mechanical Life | 10,000 Steps | |
| Electrical Life | 10,000 Steps | |
| Standard Package | 50 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | RDTBR10P1T | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
RDTBR10P1T is in stock for immediate shipping now. We are the distributor of E-Switch all series components. The condition of RDTBR10P1T is new and unused, you can buy RDTBR10P1T E-Switch with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for RDTBR10P1T.
