| Manufacturer Part Number: | RDK-IDM |
|---|---|
| Manufacturer: | Texas Instruments |
| Product Category: | Evaluation and Demonstration Boards and Kits |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |

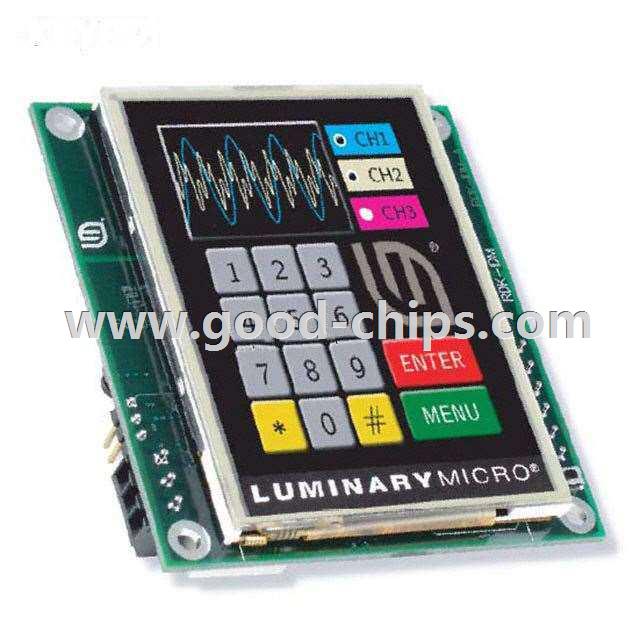

| Description: | LM3S6918 Stellaris® Series Reference Design, Intelligent Display Module Evaluation Board |
| Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | RDK-IDM Datasheet |
| Internal Part Number | 898-RDK-IDM | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | Development Tool Selector | |
| Category | Programmers, Development Systems | |
| Family | Evaluation and Demonstration Boards and Kits | |
| Manufacturer | Texas Instruments | |
| Series | Stellaris® | |
| Part Status | Obsolete | |
| Main Purpose | Reference Design, Intelligent Display Module | |
| Embedded | Yes, MCU, 32-Bit | |
| Utilized IC / Part | LM3S6918 | |
| Primary Attributes | Ethernet-enabled, PoE, 2.8" QVGA, Touch Screen | |
| Secondary Attributes | LED Backlight, 256KB Main Flash, 64KB SRAM | |
| Supplied Contents | Board and Display, Debug Adapter, Power Supply, CD, Cable | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | RDK-IDM | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
RDK-IDM is in stock for immediate shipping now. We are the distributor of Texas Instruments all series components. The condition of RDK-IDM is new and unused, you can buy RDK-IDM Texas Instruments with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for RDK-IDM.
