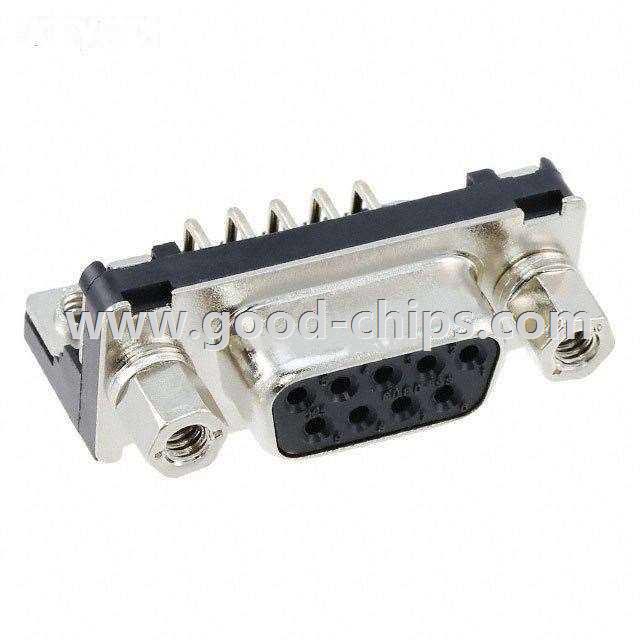

Manufacturer Part Number: | RDED-9S-LNA(4-40)(55) |
---|---|
Manufacturer: | Hirose Electric Co Ltd |
Product Category: | D-Sub Connectors |
Available Quantity: | 9030 Pieces |
Unit Price: | Quote by Email |
Description: | 9 Position D-Sub Receptacle, Female Sockets Connector, Through Hole, Right Angle Solder |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | RDED-9S-LNA(4-40)(55) Datasheet |
Internal Part Number | 898-RDED-9S-LNA(4-40)(55) | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Online Catalog | RD*D Series | |
Category | Connectors, Interconnects | |
Family | D-Sub Connectors | |
Manufacturer | Hirose Electric Co Ltd | |
Series | RD*D | |
Packaging | Tray | |
Part Status | Active | |
Connector Style | D-Sub | |
Connector Type | Receptacle, Female Sockets | |
Number of Positions | 9 | |
Number of Rows | 2 | |
Shell Size, Connector Layout | 1 (DE, E) | |
Contact Type | Signal | |
Mounting Type | Through Hole, Right Angle | |
Flange Feature | Mating Side, Female Screwlock (4-40) | |
Termination | Solder | |
Features | - | |
Shell Material, Finish | Steel, Nickel Plated | |
Contact Finish | Gold | |
Contact Finish Thickness | 8µin (0.20µm) | |
Ingress Protection | - | |
Operating Temperature | -55°C ~ 85°C | |
Voltage Rating | 350V | |
Current Rating | 3A | |
Housing Material | Polybutylene Terephthalate (PBT) | |
Color | Black | |
Standard Package | 10 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | RDED-9S-LNA(4-40)(55) | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
RDED-9S-LNA(4-40)(55) is in stock for immediate shipping now. We are the distributor of Hirose Electric Co Ltd all series components. The condition of RDED-9S-LNA(4-40)(55) is new and unused, you can buy RDED-9S-LNA(4-40)(55) Hirose Electric Co Ltd with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for RDED-9S-LNA(4-40)(55).
