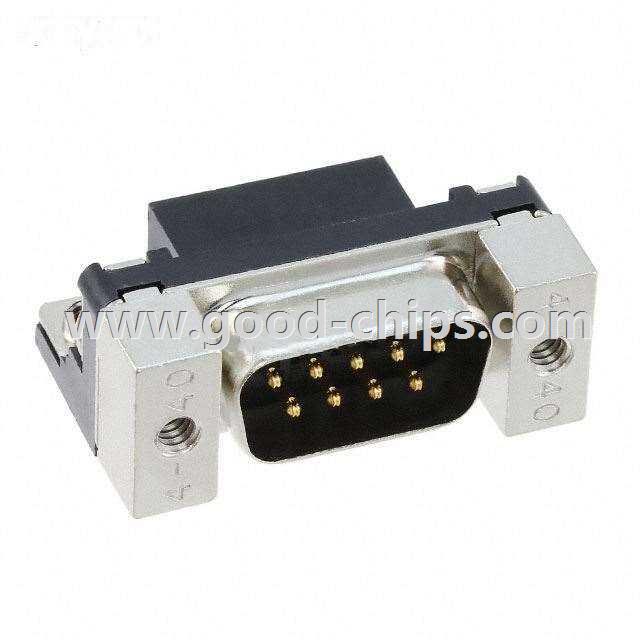

| Manufacturer Part Number: | RDED-9P-LN(4-40)(55) |
|---|---|
| Manufacturer: | Hirose Electric Co Ltd |
| Product Category: | D-Sub Connectors |
| Available Quantity: | 9020 Pieces |
| Unit Price: | Quote by Email |
| Description: | 9 Position D-Sub Plug, Male Pins Connector, Through Hole, Right Angle Solder |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | RDED-9P-LN(4-40)(55) Datasheet |
| Internal Part Number | 898-RDED-9P-LN(4-40)(55) | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | RD*D Series | |
| Category | Connectors, Interconnects | |
| Family | D-Sub Connectors | |
| Manufacturer | Hirose Electric Co Ltd | |
| Series | RD*D | |
| Packaging | Tray | |
| Part Status | Active | |
| Connector Style | D-Sub | |
| Connector Type | Plug, Male Pins | |
| Number of Positions | 9 | |
| Number of Rows | 2 | |
| Shell Size, Connector Layout | 1 (DE, E) | |
| Contact Type | Signal | |
| Mounting Type | Through Hole, Right Angle | |
| Flange Feature | Housing/Shell (4-40) | |
| Termination | Solder | |
| Features | - | |
| Shell Material, Finish | Steel, Nickel Plated | |
| Contact Finish | Gold | |
| Contact Finish Thickness | 8µin (0.20µm) | |
| Ingress Protection | - | |
| Operating Temperature | -55°C ~ 85°C | |
| Voltage Rating | 350V | |
| Current Rating | 3A | |
| Housing Material | Polybutylene Terephthalate (PBT) | |
| Color | Black | |
| Standard Package | 10 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | RDED-9P-LN(4-40)(55) | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
RDED-9P-LN(4-40)(55) is in stock for immediate shipping now. We are the distributor of Hirose Electric Co Ltd all series components. The condition of RDED-9P-LN(4-40)(55) is new and unused, you can buy RDED-9P-LN(4-40)(55) Hirose Electric Co Ltd with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for RDED-9P-LN(4-40)(55).
