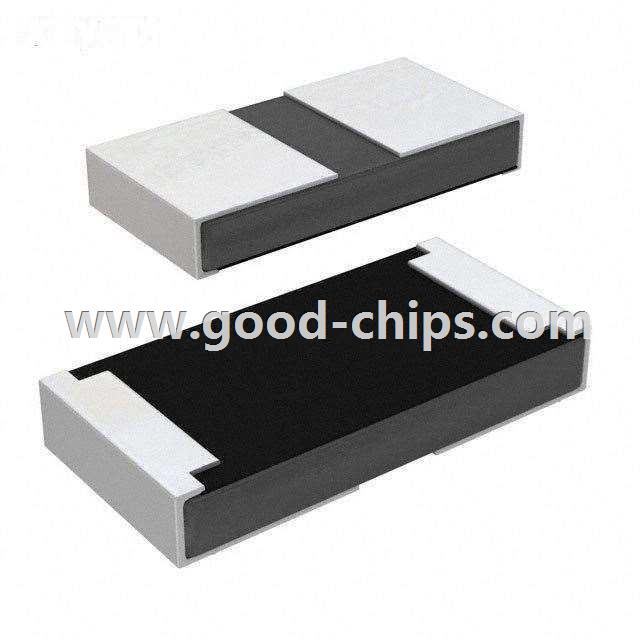

Manufacturer Part Number: | RCP1206W560RJS6 |
---|---|
Manufacturer: | Vishay BC Components |
Product Category: | Chip Resistor - Surface Mount |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | RES SMD 560 OHM 5% 11W 1206 |
Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | RCP1206W560RJS6 Datasheet |
Internal Part Number | 898-RCP1206W560RJS6 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Category | Resistors | |
Family | Chip Resistor - Surface Mount | |
Manufacturer | Vishay Dale | |
Series | RCP | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Resistance (Ohms) | 560 | |
Tolerance | ±5% | |
Power (Watts) | 11W | |
Composition | Thick Film | |
Features | Moisture Resistant | |
Temperature Coefficient | ±150ppm/°C | |
Operating Temperature | -55°C ~ 155°C | |
Package / Case | 1206 (3016 Metric) | |
Supplier Device Package | 1206 | |
Size / Dimension | 0.122" L x 0.060" W (3.10mm x 1.52mm) | |
Height | 0.025" (0.64mm) | |
Number of Terminations | 2 | |
Standard Package | 300 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | RCP1206W560RJS6 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
RCP1206W560RJS6 is in stock for immediate shipping now. We are the distributor of Vishay BC Components all series components. The condition of RCP1206W560RJS6 is new and unused, you can buy RCP1206W560RJS6 Vishay BC Components with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for RCP1206W560RJS6.
