| Manufacturer Part Number: | RCP-012 |
|---|---|
| Manufacturer: | CUI Inc. |
| Product Category: | Barrel - Audio Connectors |
| Available Quantity: | 12266 Pieces |
| Unit Price: | Quote by Email |

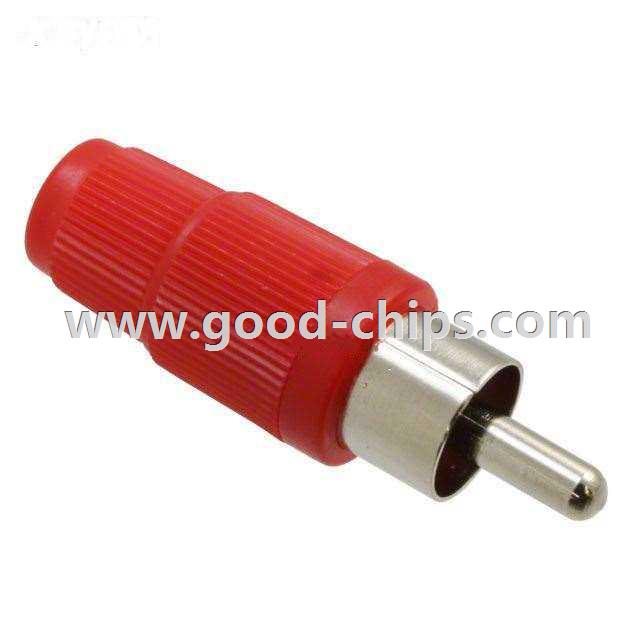

| Description: | 3.20mm ID, 9.00mm OD (RCA) Phono (RCA) Plug Mono Connector Solder Eyelet(s) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | RCP-012 Datasheet |
| Internal Part Number | 898-RCP-012 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| RoHS Information | RCP-01x Cert of Compliance | |
| Online Catalog | CUI | |
| Category | Connectors, Interconnects | |
| Family | Barrel - Audio Connectors | |
| Manufacturer | CUI Inc. | |
| Series | RCP | |
| Packaging | Bulk | |
| Part Status | Active | |
| Connector Type | Phono (RCA) Plug | |
| Gender | Male | |
| Signal Lines | Mono | |
| Industry Recognized Mating Diameter | 3.20mm ID, 9.00mm OD (RCA) | |
| Actual Diameter | 0.126" (3.20mm ID), 0.354" (9.00mm OD) | |
| Number of Positions/Contacts | 2 Conductors, 2 Contacts | |
| Internal Switch(s) | Does Not Contain Switch | |
| Mounting Type | Free Hanging (In-Line) | |
| Termination | Solder Eyelet(s) | |
| Shielding | Unshielded | |
| Features | - | |
| Insulation Color | - | |
| Voltage - Rated | 12VDC | |
| Current Rating | 5A | |
| Mating Length/Depth | 0.563" (14.30mm) | |
| Contact Material - Plating | Nickel | |
| Body Material | Brass | |
| Body Color | Red | |
| Includes | 2 pcs - 1 Connector, 1 Handle | |
| Standard Package | 100 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | RCP-012 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
RCP-012 is in stock for immediate shipping now. We are the distributor of CUI Inc. all series components. The condition of RCP-012 is new and unused, you can buy RCP-012 CUI Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for RCP-012.
