Manufacturer Part Number: | RCNL25R0F04R5KTT |
---|---|
Manufacturer: | American Technical Ceramics |
Product Category: | EMI/RFI Filters (LC, RC Networks) |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | RC EMI Filter R = 25 Ohms, C = 4.5pF 0402 (1005 Metric) |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | RCNL25R0F04R5KTT Datasheet |
Internal Part Number | 898-RCNL25R0F04R5KTT | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Online Catalog | RCNL Series | |
Category | Filters | |
Family | EMI/RFI Filters (LC, RC Networks) | |
Manufacturer | American Technical Ceramics | |
Series | RCN | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Type | - | |
Filter Order | - | |
Technology | RC | |
Number of Channels | - | |
Center / Cutoff Frequency | - | |
Attenuation Value | - | |
Resistance - Channel (Ohms) | 25 | |
Current | - | |
Values | R = 25 Ohms, C = 4.5pF | |
ESD Protection | No | |
Operating Temperature | -55°C ~ 125°C | |
Applications | General Purpose | |
Voltage - Rated | - | |
Mounting Type | Surface Mount | |

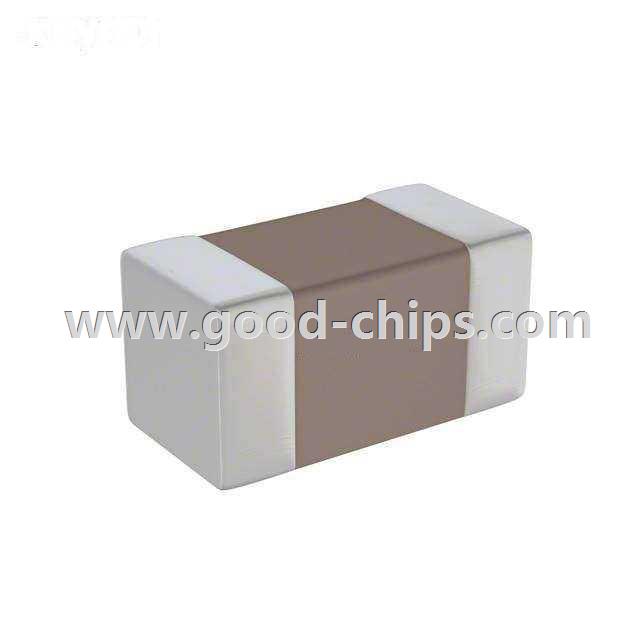

Package / Case | 0402 (1005 Metric) | |
Size / Dimension | 0.039" L x 0.020" W (1.00mm x 0.50mm) | |
Height | 0.024" (0.60mm) | |
Standard Package | 1,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | RCNL25R0F04R5KTT | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
RCNL25R0F04R5KTT is in stock for immediate shipping now. We are the distributor of American Technical Ceramics all series components. The condition of RCNL25R0F04R5KTT is new and unused, you can buy RCNL25R0F04R5KTT American Technical Ceramics with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for RCNL25R0F04R5KTT.
