Manufacturer Part Number: | RCLAMP0524PATCT |
---|---|
Manufacturer: | Semtech Corporation |
Product Category: | TVS - Diodes |
Available Quantity: | 66010 Pieces |
Unit Price: | Quote by Email |
Description: | TVS DIODE 5VWM 15VC SLP2510P8 |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | RCLAMP0524PATCT Datasheet |
Internal Part Number | 898-RCLAMP0524PATCT | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
PCN Design/Specification | Copper Bond Wire Revision 2 02/Jul/2014 | |
Online Catalog | RailClamp® | |
Category | Circuit Protection | |
Family | TVS - Diodes | |
Manufacturer | Semtech Corporation | |
Series | RailClamp® | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Type | Steering (Rail to Rail) | |
Unidirectional Channels | - | |
Bidirectional Channels | 4 | |
Voltage - Reverse Standoff (Typ) | 5V (Max) | |
Voltage - Breakdown (Min) | 6V | |
Voltage - Clamping (Max) @ Ipp | 15V | |
Current - Peak Pulse (10/1000µs) | 1A (8/20µs) | |
Power - Peak Pulse | 150W | |
Power Line Protection | Yes | |
Applications | HDMI | |
Capacitance @ Frequency | 0.8pF @ 1MHz | |
Operating Temperature | -55°C ~ 125°C (TJ) | |
Mounting Type | Surface Mount | |
Package / Case | 10-UFDFN | |

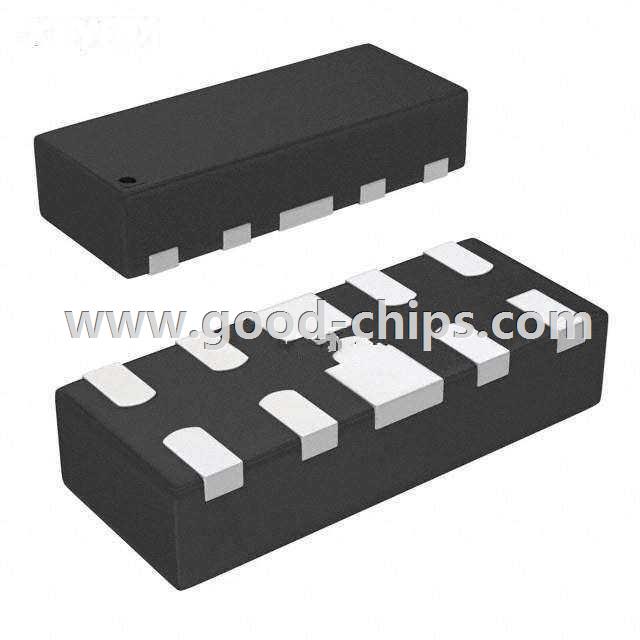

Supplier Device Package | SLP2510P8 | |
Standard Package | 3,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | RCLAMP0524PATCT | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
RCLAMP0524PATCT is in stock for immediate shipping now. We are the distributor of Semtech Corporation all series components. The condition of RCLAMP0524PATCT is new and unused, you can buy RCLAMP0524PATCT Semtech Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for RCLAMP0524PATCT.
