| Manufacturer Part Number: | RCLAMP0506T.TCT |
|---|---|
| Manufacturer: | Semtech Corporation |
| Product Category: | TVS - Diodes |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | TVS DIODE 5VWM 15VC |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | RCLAMP0506T.TCT Datasheet |
| Internal Part Number | 898-RCLAMP0506T.TCT | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | RailClamp® Series | |
| Category | Circuit Protection | |
| Family | TVS - Diodes | |
| Manufacturer | Semtech Corporation | |
| Series | RailClamp® | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Type | Steering (Rail to Rail) | |
| Unidirectional Channels | - | |
| Bidirectional Channels | 6 | |
| Voltage - Reverse Standoff (Typ) | 5V (Max) | |
| Voltage - Breakdown (Min) | 6.5V | |
| Voltage - Clamping (Max) @ Ipp | 15V | |
| Current - Peak Pulse (10/1000µs) | 5A (8/20µs) | |
| Power - Peak Pulse | 75W | |
| Power Line Protection | Yes | |
| Applications | HDMI | |
| Capacitance @ Frequency | 0.7pF @ 1MHz | |
| Operating Temperature | -55°C ~ 125°C (TJ) | |
| Mounting Type | Surface Mount | |

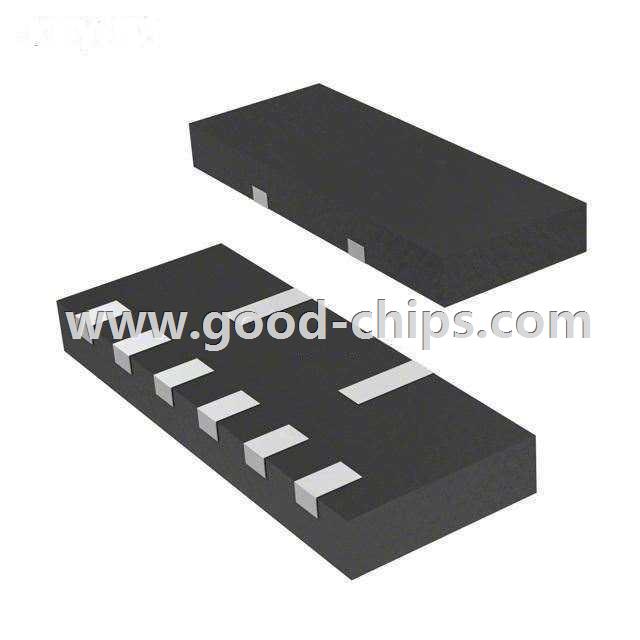

| Package / Case | 8-XFDFN Exposed Pad | |
| Supplier Device Package | SLP3313P6T | |
| Standard Package | 3,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | RCLAMP0506T.TCT | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
RCLAMP0506T.TCT is in stock for immediate shipping now. We are the distributor of Semtech Corporation all series components. The condition of RCLAMP0506T.TCT is new and unused, you can buy RCLAMP0506T.TCT Semtech Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for RCLAMP0506T.TCT.
