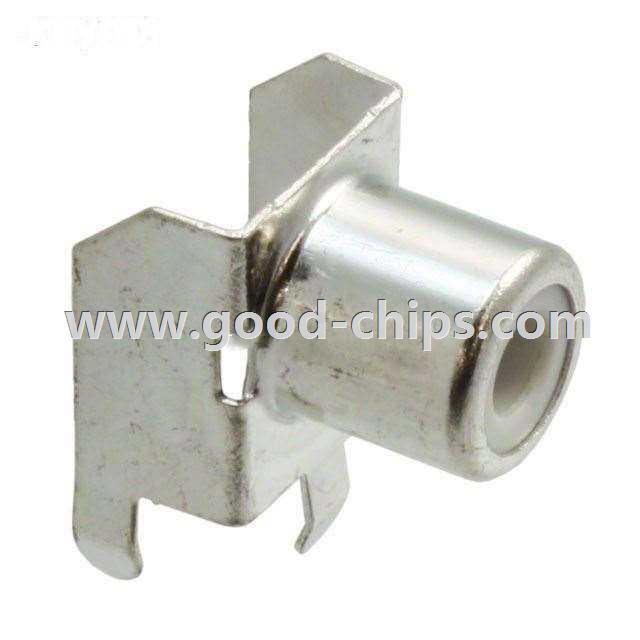

Manufacturer Part Number: | RCJ-013 |
---|---|
Manufacturer: | CUI Inc. |
Product Category: | Barrel - Audio Connectors |
Available Quantity: | 18958 Pieces |
Unit Price: | Quote by Email |
Description: | 3.20mm ID, 9.00mm OD (RCA) Phono (RCA) Jack Mono Connector Solder |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | RCJ-013 Datasheet |
Internal Part Number | 898-RCJ-013 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
RoHS Information | RCJ-01x Cert of Compliance | |
3D Model | RCJ-013 | |
Online Catalog | CUI | |
Category | Connectors, Interconnects | |
Family | Barrel - Audio Connectors | |
Manufacturer | CUI Inc. | |
Series | RCJ | |
Packaging | Bulk | |
Part Status | Active | |
Connector Type | Phono (RCA) Jack | |
Gender | Female | |
Signal Lines | Mono | |
Industry Recognized Mating Diameter | 3.20mm ID, 9.00mm OD (RCA) | |
Actual Diameter | 0.142" (3.60mm ID), 0.327" (8.30mm OD) | |
Number of Positions/Contacts | 2 Conductors, 2 Contacts | |
Internal Switch(s) | Does Not Contain Switch | |
Mounting Type | Through Hole, Right Angle | |
Termination | Solder | |
Shielding | Unshielded | |
Features | Board Lock | |
Insulation Color | White | |
Voltage - Rated | - | |
Current Rating | - | |
Mating Length/Depth | - | |
Contact Material - Plating | Tin | |
Body Material | Steel | |
Body Color | Silver | |
Includes | 1 pc - 1 Connector | |
Standard Package | 500 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | RCJ-013 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
RCJ-013 is in stock for immediate shipping now. We are the distributor of CUI Inc. all series components. The condition of RCJ-013 is new and unused, you can buy RCJ-013 CUI Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for RCJ-013.
