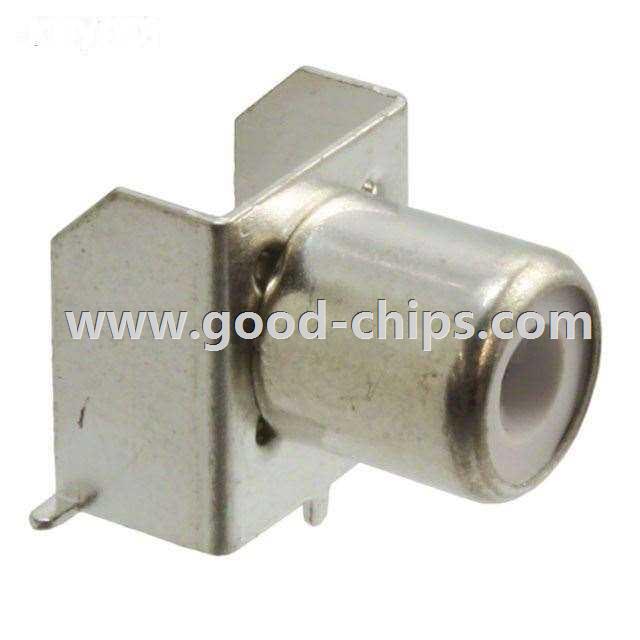

| Manufacturer Part Number: | RCJ-013-SMT-TR |
|---|---|
| Manufacturer: | CUI Inc. |
| Product Category: | Barrel - Audio Connectors |
| Available Quantity: | 25010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 3.20mm ID, 9.00mm OD (RCA) Phono (RCA) Jack Mono Connector Solder |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | RCJ-013-SMT-TR Datasheet |
| Internal Part Number | 898-RCJ-013-SMT-TR | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| RoHS Information | RCJ-011-SMT Cert of Compliance | |
| 3D Model | RCJ-013-SMT | |
| PCN Design/Specification | Multiple Devices Plating 19/Sep/2014 | |
| Online Catalog | CUI | |
| Category | Connectors, Interconnects | |
| Family | Barrel - Audio Connectors | |
| Manufacturer | CUI Inc. | |
| Series | RCJ | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Connector Type | Phono (RCA) Jack | |
| Gender | Female | |
| Signal Lines | Mono | |
| Industry Recognized Mating Diameter | 3.20mm ID, 9.00mm OD (RCA) | |
| Actual Diameter | 0.146" (3.70mm ID), 0.327" (8.30mm OD) | |
| Number of Positions/Contacts | 2 Conductors, 2 Contacts | |
| Internal Switch(s) | Does Not Contain Switch | |
| Mounting Type | Surface Mount, Right Angle | |
| Termination | Solder | |
| Shielding | Unshielded | |
| Features | - | |
| Insulation Color | White | |
| Voltage - Rated | - | |
| Current Rating | - | |
| Mating Length/Depth | - | |
| Contact Material - Plating | Tin | |
| Body Material | Steel | |
| Body Color | Silver | |
| Includes | 1 pc - 1 Connector | |
| Standard Package | 250 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | RCJ-013-SMT-TR | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
RCJ-013-SMT-TR is in stock for immediate shipping now. We are the distributor of CUI Inc. all series components. The condition of RCJ-013-SMT-TR is new and unused, you can buy RCJ-013-SMT-TR CUI Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for RCJ-013-SMT-TR.
