| Manufacturer Part Number: | RAVF324DJT390R |
|---|---|
| Manufacturer: | Stackpole Electronics Inc. |
| Product Category: | Resistor Networks, Arrays |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | RES ARRAY 4 RES 390 OHM 2012 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | RAVF324DJT390R Datasheet |
| Internal Part Number | 898-RAVF324DJT390R | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| RoHS Information | RoHS Compliance | |

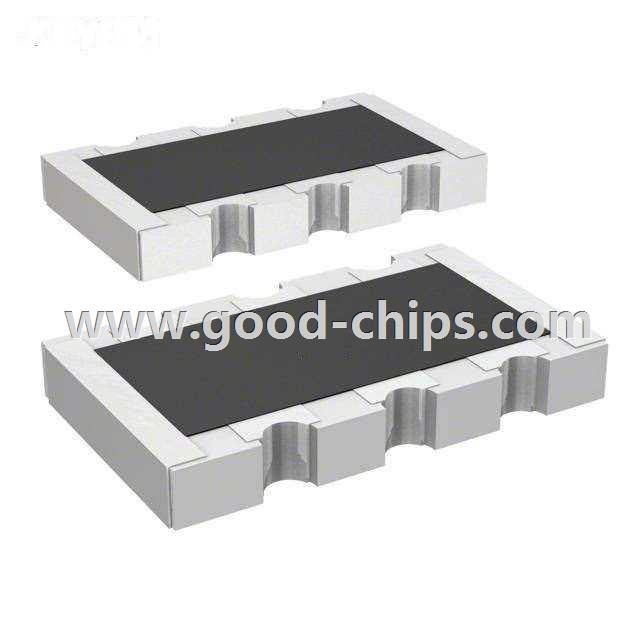

| Featured Product | RAVF Series Convex Termination Chip Resistor Array | |
| PCN Part Number | Global Part Number 9/Aug/2010 | |
| Category | Resistors | |
| Family | Resistor Networks, Arrays | |
| Manufacturer | Stackpole Electronics Inc. | |
| Series | RAVF | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Circuit Type | Isolated | |
| Resistance (Ohms) | 390 | |
| Tolerance | ±5% | |
| Number of Resistors | 4 | |
| Number of Pins | 8 | |
| Power Per Element | 125mW | |
| Temperature Coefficient | ±200ppm/°C | |
| Operating Temperature | -55°C ~ 125°C | |
| Applications | - | |
| Mounting Type | Surface Mount | |
| Package / Case | 2012, Convex, Long Side Terminals | |
| Supplier Device Package | - | |
| Size / Dimension | 0.200" L x 0.122" W (5.08mm x 3.10mm) | |
| Height | 0.026" (0.65mm) | |
| Standard Package | 4,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | RAVF324DJT390R | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
RAVF324DJT390R is in stock for immediate shipping now. We are the distributor of Stackpole Electronics Inc. all series components. The condition of RAVF324DJT390R is new and unused, you can buy RAVF324DJT390R Stackpole Electronics Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for RAVF324DJT390R.
