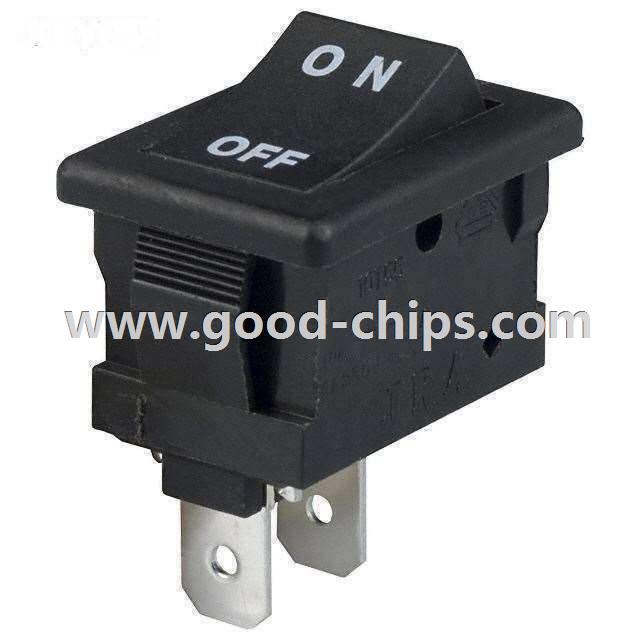

RA1066AFF

RA1066AFF
Manufacturer Part Number:RA1066AFF
Manufacturer:
Product Category:Rocker Switches
Available Quantity:9010 Pieces
Unit Price:Quote by Email
Description:Rocker Switch SPST 10A (AC) 125V Panel Mount, Snap-In
Lead Free Status / RoHS Status:Lead free / RoHS Compliant
Moisture Sensitivity Level (MSL):1 (Unlimited)
Production Status (Lifecycle):In Production
Delivery Time:1-2 Days
Date Code (D/C):New
Datasheet Download: RA1066AFF Datasheet
RA1066AFF´s Parameters
Internal Part Number898-RA1066AFF
Manufacturer Lead time6-8 weeks
ConditionNew & Unused, Original Sealed
Product Training ModulesSwitch Basics
RoHS InformationRA1066 Series RoHS Cert of Compliance
CategorySwitches
FamilyRocker Switches
ManufacturerE-Switch
SeriesRA1066
PackagingBulk
Part StatusActive
CircuitSPST
Switch FunctionOn-Off
Current Rating10A (AC)
Voltage Rating - AC125V
Voltage Rating - DC-
Actuator TypeConcave (Curved)
Color - Actuator/CapBlack
Actuator MarkingOn - Off, Vertical
Illumination Type, Color-
Illumination Voltage (Nominal)-
Mounting TypePanel Mount, Snap-In
Termination StyleQuick Connect - 0.187" (4.7mm)
Ingress Protection-
Features-
Panel Cutout DimensionsRectangular - 19.20mm x 13.00mm
Operating Temperature-
Mechanical Life25,000 Cycles
Electrical Life10,000 Cycles
Standard Package 150
Weight0.001 KG
ApplicationEmail for details
Replacement PartRA1066AFF
Country of OriginUSA / JAPAN / Philippines / Malaysia
MOQ1 Piece
Picture / Image / PhotoSend via email

RA1066AFF is in stock for immediate shipping now. We are the distributor of E-Switch all series components. The condition of RA1066AFF is new and unused, you can buy RA1066AFF E-Switch with us at a very low price and quick delivery.

Please kindly send us an email if you have any demands for RA1066AFF.
