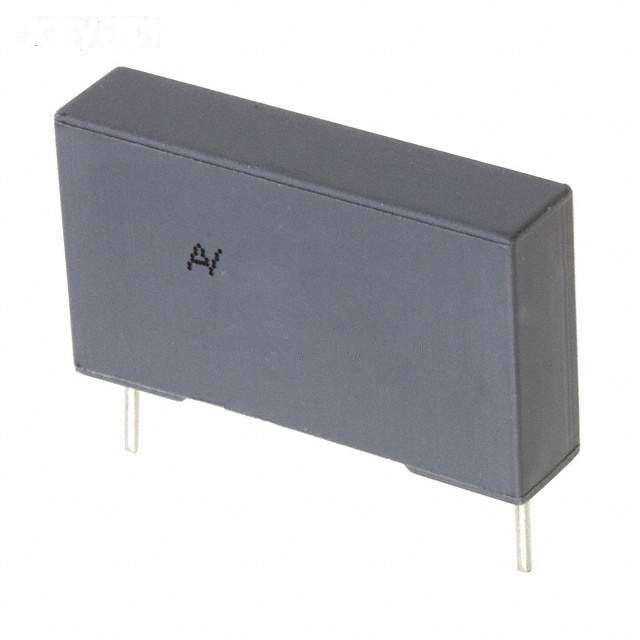

| Manufacturer Part Number: | R76UN1220SE00K |
|---|---|
| Manufacturer: | Kemet |
| Product Category: | Film Capacitors |
| Available Quantity: | 9809 Pieces |
| Unit Price: | Quote by Email |
| Description: | 2200pF Film Capacitor 700V 2000V (2kV) Polypropylene (PP), Metallized Radial 1.043" L x 0.236" W (26.50mm x 6.00mm) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | R76UN1220SE00K Datasheet |
| Internal Part Number | 898-R76UN1220SE00K | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Capacitor Basics- Typical Uses for Capacitors | |
| Online Catalog | R76 Series | |
| Category | Capacitors | |
| Family | Film Capacitors | |
| Manufacturer | Kemet | |
| Series | R76 | |
| Packaging | Bulk | |
| Part Status | Active | |
| Capacitance | 2200pF | |
| Tolerance | ±10% | |
| Voltage Rating - AC | 700V | |
| Voltage Rating - DC | 2000V (2kV) | |
| Dielectric Material | Polypropylene (PP), Metallized | |
| ESR (Equivalent Series Resistance) | - | |
| Operating Temperature | -55°C ~ 105°C | |
| Mounting Type | Through Hole | |
| Package / Case | Radial | |
| Size / Dimension | 1.043" L x 0.236" W (26.50mm x 6.00mm) | |
| Height - Seated (Max) | 0.591" (15.00mm) | |
| Termination | PC Pins | |
| Lead Spacing | 0.886" (22.50mm) | |
| Applications | High Frequency, Switching; High Pulse, DV/DT | |
| Features | Derating Recommended | |
| Standard Package | 805 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | R76UN1220SE00K | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
R76UN1220SE00K is in stock for immediate shipping now. We are the distributor of Kemet all series components. The condition of R76UN1220SE00K is new and unused, you can buy R76UN1220SE00K Kemet with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for R76UN1220SE00K.
