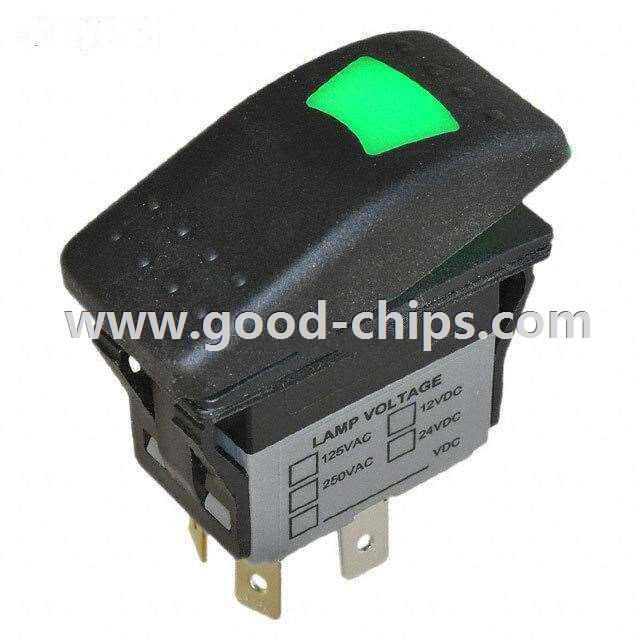

| Manufacturer Part Number: | R711FE1-SXXX2BDGNW |
|---|---|
| Manufacturer: | E-Switch |
| Product Category: | Rocker Switches |
| Available Quantity: | 9446 Pieces |
| Unit Price: | Quote by Email |
| Description: | Rocker Switch SPST 16A (DC) Panel Mount, Snap-In |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | R711FE1-SXXX2BDGNW Datasheet |
| Internal Part Number | 898-R711FE1-SXXX2BDGNW | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | R7 Series Power Rocker Switch | |
| Featured Product | R7 Series Rocker Switches | |
| 3D Model | R711FE1-SXXXxxDxxx.stp | |
| Online Catalog | R7 Series | |
| Category | Switches | |
| Family | Rocker Switches | |
| Manufacturer | E-Switch | |
| Series | R7 | |
| Packaging | Bulk | |
| Part Status | Active | |
| Circuit | SPST | |
| Switch Function | On-Off | |
| Current Rating | 16A (DC) | |
| Voltage Rating - AC | - | |
| Voltage Rating - DC | 30V | |
| Actuator Type | Convex (Reverse V) - Illuminated | |
| Color - Actuator/Cap | Black | |
| Actuator Marking | No Marking | |
| Illumination Type, Color | LED, Green | |
| Illumination Voltage (Nominal) | 12 VDC | |
| Mounting Type | Panel Mount, Snap-In | |
| Termination Style | Quick Connect - 0.250" (6.3mm) | |
| Ingress Protection | IP67 - Dust Tight, Waterproof | |
| Features | - | |
| Panel Cutout Dimensions | Rectangular - 37.00mm x 21.10mm | |
| Operating Temperature | 0°C ~ 55°C | |
| Mechanical Life | - | |
| Electrical Life | 10,000 Cycles | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | R711FE1-SXXX2BDGNW | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
R711FE1-SXXX2BDGNW is in stock for immediate shipping now. We are the distributor of E-Switch all series components. The condition of R711FE1-SXXX2BDGNW is new and unused, you can buy R711FE1-SXXX2BDGNW E-Switch with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for R711FE1-SXXX2BDGNW.
