| Manufacturer Part Number: | R5S72644P144FP#UZ |
|---|---|
| Manufacturer: | Renesas Electronics America |
| Product Category: | Embedded - Microcontrollers |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | SH2A-FPU SuperH® SH7260 Microcontroller IC 32-Bit 144MHz ROMless 208-LQFP (28x28) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | R5S72644P144FP#UZ Datasheet |
| Internal Part Number | 898-R5S72644P144FP#UZ | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | Development Tool Selector | |
| Category | Integrated Circuits (ICs) | |
| Family | Embedded - Microcontrollers | |
| Manufacturer | Renesas Electronics America | |
| Series | SuperH® SH7260 | |
| Packaging | Tray | |
| Part Status | Active | |
| Core Processor | SH2A-FPU | |
| Core Size | 32-Bit | |
| Speed | 144MHz | |
| Connectivity | I²C, SCI, SD, SIO, SPI, USB | |
| Peripherals | DMA, POR, PWM, WDT | |
| Number of I/O | 115 | |
| Program Memory Size | - | |
| Program Memory Type | ROMless | |
| EEPROM Size | - | |
| RAM Size | 640K x 8 | |
| Voltage - Supply (Vcc/Vdd) | 1.1 V ~ 3.6 V | |
| Data Converters | A/D 8x10b | |
| Oscillator Type | External | |
| Operating Temperature | -40°C ~ 85°C (TA) | |

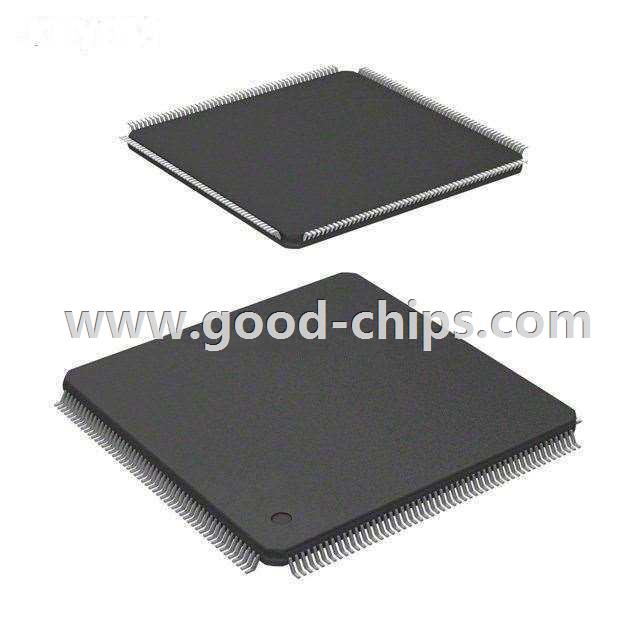

| Package / Case | 208-LQFP | |
| Supplier Device Package | 208-LQFP (28x28) | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | R5S72644P144FP#UZ | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
R5S72644P144FP#UZ is in stock for immediate shipping now. We are the distributor of Renesas Electronics America all series components. The condition of R5S72644P144FP#UZ is new and unused, you can buy R5S72644P144FP#UZ Renesas Electronics America with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for R5S72644P144FP#UZ.
