| Manufacturer Part Number: | R5F5630ADDFC#V0 |
|---|---|
| Manufacturer: | Renesas Electronics America |
| Product Category: | Embedded - Microcontrollers |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | RX RX600 Microcontroller IC 32-Bit 100MHz 768KB (768K x 8) FLASH 176-LFQFP (24x24) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | R5F5630ADDFC#V0 Datasheet |
| Internal Part Number | 898-R5F5630ADDFC#V0 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | Development Tool Selector | |
| Category | Integrated Circuits (ICs) | |
| Family | Embedded - Microcontrollers | |
| Manufacturer | Renesas Electronics America | |
| Series | RX600 | |
| Packaging | Tray | |
| Part Status | Active | |
| Core Processor | RX | |
| Core Size | 32-Bit | |
| Speed | 100MHz | |
| Connectivity | CAN, EBI/EMI, I²C, LIN, SCI, SPI, USB | |
| Peripherals | DMA, LVD, POR, PWM, WDT | |
| Number of I/O | 148 | |
| Program Memory Size | 768KB (768K x 8) | |
| Program Memory Type | FLASH | |
| EEPROM Size | 32K x 8 | |
| RAM Size | 96K x 8 | |
| Voltage - Supply (Vcc/Vdd) | 2.7 V ~ 3.6 V | |
| Data Converters | A/D 8x10b, 21x12b, D/A 2x10b | |
| Oscillator Type | Internal | |
| Operating Temperature | -40°C ~ 85°C (TA) | |

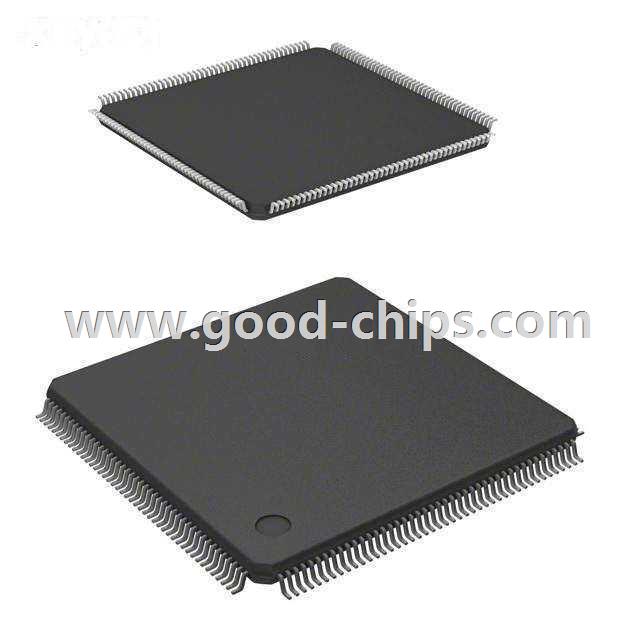

| Package / Case | 176-LQFP | |
| Supplier Device Package | 176-LFQFP (24x24) | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | R5F5630ADDFC#V0 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
R5F5630ADDFC#V0 is in stock for immediate shipping now. We are the distributor of Renesas Electronics America all series components. The condition of R5F5630ADDFC#V0 is new and unused, you can buy R5F5630ADDFC#V0 Renesas Electronics America with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for R5F5630ADDFC#V0.
