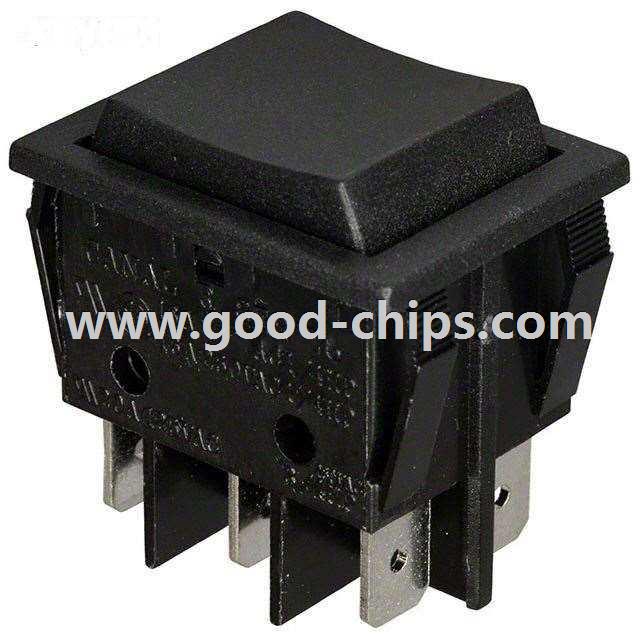

| Manufacturer Part Number: | R2601C2NBB |
|---|---|
| Manufacturer: | Apem Inc. |
| Product Category: | Rocker Switches |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Rocker Switch DPDT 20A (AC) 125V Panel Mount, Snap-In |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | R2601C2NBB Datasheet |
| Internal Part Number | 898-R2601C2NBB | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Switches | |
| Family | Rocker Switches | |
| Manufacturer | Apem Inc. | |
| Series | R | |
| Packaging | Bulk | |
| Part Status | Obsolete | |
| Circuit | DPDT | |
| Switch Function | Mom-Off-Mom | |
| Current Rating | 20A (AC) | |
| Voltage Rating - AC | 125V | |
| Voltage Rating - DC | - | |
| Actuator Type | Concave (Curved) | |
| Color - Actuator/Cap | Black | |
| Actuator Marking | No Marking | |
| Illumination Type, Color | - | |
| Illumination Voltage (Nominal) | - | |
| Mounting Type | Panel Mount, Snap-In | |
| Termination Style | Quick Connect - 0.250" (6.3mm) | |
| Ingress Protection | - | |
| Features | - | |
| Panel Cutout Dimensions | Rectangular - 30.00mm x 22.00mm | |
| Operating Temperature | -20°C ~ 125°C | |
| Mechanical Life | - | |
| Electrical Life | 10,000 Cycles | |
| Standard Package | 100 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | R2601C2NBB | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
R2601C2NBB is in stock for immediate shipping now. We are the distributor of Apem Inc. all series components. The condition of R2601C2NBB is new and unused, you can buy R2601C2NBB Apem Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for R2601C2NBB.
