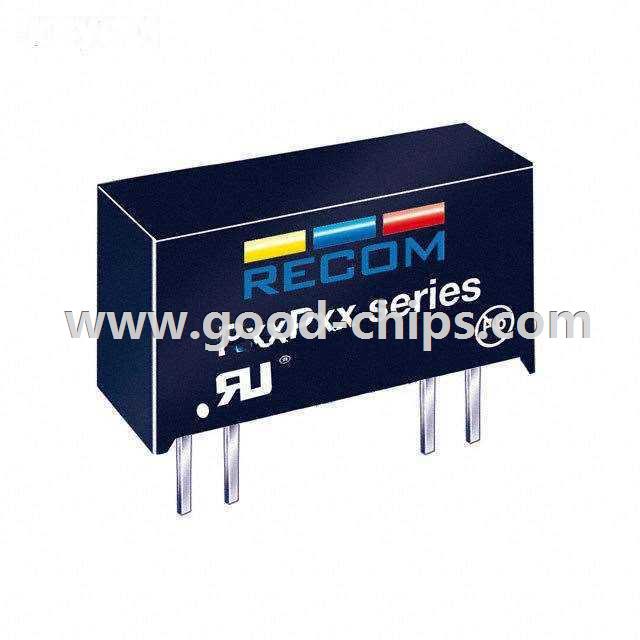

| Manufacturer Part Number: | R24P3.3S/P/X2 |
|---|---|
| Manufacturer: | Recom Power |
| Product Category: | DC DC Converters |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | CONVERTER DC/DC 24VIN 3.3VOUT 1W |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | R24P3.3S/P/X2 Datasheet |
| Internal Part Number | 898-R24P3.3S/P/X2 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Purpose of DC/DC Converters High Isolation Medical Grade DC-DC Converters High Isolation Medical Grade DC-DC Converters | |
| Video File | RECOM High Isolation DC DC Converter | Digi-Key Daily | |
| Category | Power Supplies - Board Mount | |
| Family | DC DC Converters | |
| Manufacturer | Recom Power | |
| Series | ECONOLINE RxxPxx | |
| Packaging | Tube | |
| Part Status | Active | |
| Type | Isolated Module | |
| Number of Outputs | 1 | |
| Voltage - Input (Min) | 21.6V | |
| Voltage - Input (Max) | 26.4V | |
| Voltage - Output 1 | 3.3V | |
| Voltage - Output 2 | - | |
| Voltage - Output 3 | - | |
| Current - Output (Max) | 303mA | |
| Power (Watts) - Manufacture Series | 1W | |
| Voltage - Isolation | 6.4kV (6400V) | |
| Applications | ITE (Commercial), Medical | |
| Features | SCP | |
| Mounting Type | Through Hole | |
| Package / Case | 7-SIP Module (4 Leads) | |
| Size / Dimension | 0.77" L x 0.39" W x 0.49" H (19.5mm x 9.8mm x 12.5mm) | |
| Operating Temperature | -40°C ~ 85°C | |
| Efficiency | 70% | |
| Power (Watts) - Max | 1W | |
| Standard Package | 25 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | R24P3.3S/P/X2 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
R24P3.3S/P/X2 is in stock for immediate shipping now. We are the distributor of Recom Power all series components. The condition of R24P3.3S/P/X2 is new and unused, you can buy R24P3.3S/P/X2 Recom Power with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for R24P3.3S/P/X2.
