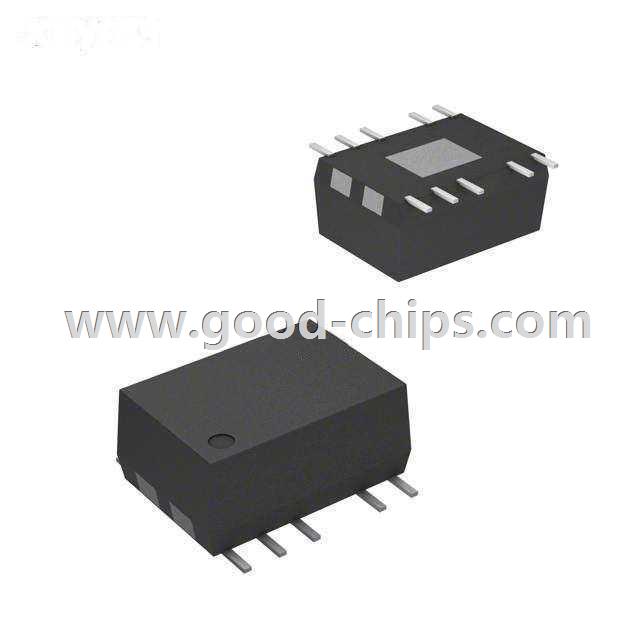

.jpg)
| Manufacturer Part Number: | R1D12-0509/HP |
|---|---|
| Manufacturer: | Recom Power |
| Product Category: | DC DC Converters |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | CONV DC/DC 1W 05VIN +/-09VOUT |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | R1D12-0509/HP Datasheet |
| Internal Part Number | 898-R1D12-0509/HP | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Power Supplies - Board Mount | |
| Family | DC DC Converters | |
| Manufacturer | Recom Power | |
| Series | ECONOLINE R1D | |
| Packaging | Tube | |
| Part Status | Active | |
| Type | Isolated Module | |
| Number of Outputs | 2 | |
| Voltage - Input (Min) | 4.5V | |
| Voltage - Input (Max) | 5.5V | |
| Voltage - Output 1 | 9V | |
| Voltage - Output 2 | -9V | |
| Voltage - Output 3 | - | |
| Current - Output (Max) | 56mA, 56mA | |
| Power (Watts) - Manufacture Series | 1W | |
| Voltage - Isolation | 3kV (3000V) | |
| Applications | ITE (Commercial), Medical | |
| Features | SCP | |
| Mounting Type | Surface Mount | |
| Package / Case | 12-SMD Module (10 Leads) | |
| Size / Dimension | 0.60" L x 0.42" W x 0.28" H (15.2mm x 10.7mm x 7.0mm) | |
| Operating Temperature | -40°C ~ 100°C | |
| Efficiency | 78% | |
| Power (Watts) - Max | 1W | |
| Standard Package | 33 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | R1D12-0509/HP | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
R1D12-0509/HP is in stock for immediate shipping now. We are the distributor of Recom Power all series components. The condition of R1D12-0509/HP is new and unused, you can buy R1D12-0509/HP Recom Power with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for R1D12-0509/HP.
