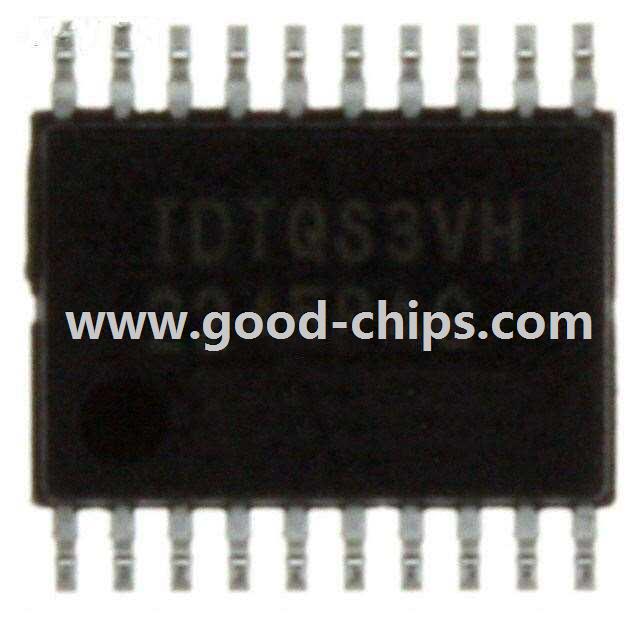

| Manufacturer Part Number: | QS3VH2245PAG |
|---|---|
| Manufacturer: | IDT, Integrated Device Technology Inc |
| Product Category: | Logic - Signal Switches, Multiplexers, Decoders |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Bus Switch 1 x 8:1 20-TSSOP |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | QS3VH2245PAG Datasheet |
| Internal Part Number | 898-QS3VH2245PAG | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Assembly/Origin | TSSOP/VFQFPN Assembly Site/Part Marking Chg 13/Nov/2015 Assembly Site Add 4/Feb/2016 Alt. Assembly Site 15/Feb/2016 Alternate Assembly Facility 14/Apr/2016 | |
| Category | Integrated Circuits (ICs) | |
| Family | Logic - Signal Switches, Multiplexers, Decoders | |
| Manufacturer | IDT, Integrated Device Technology Inc | |
| Series | 3VH | |
| Packaging | Tube | |
| Part Status | Active | |
| Type | Bus Switch | |
| Circuit | 1 x 8:1 | |
| Independent Circuits | 1 | |
| Current - Output High, Low | - | |
| Voltage Supply Source | Single Supply | |
| Voltage - Supply | 2.3 V ~ 3.6 V | |
| Operating Temperature | -40°C ~ 85°C | |
| Mounting Type | Surface Mount | |
| Package / Case | 20-TSSOP (0.173", 4.40mm Width) | |
| Supplier Device Package | 20-TSSOP | |
| Standard Package | 74 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | QS3VH2245PAG | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
QS3VH2245PAG is in stock for immediate shipping now. We are the distributor of IDT, Integrated Device Technology Inc all series components. The condition of QS3VH2245PAG is new and unused, you can buy QS3VH2245PAG IDT, Integrated Device Technology Inc with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for QS3VH2245PAG.
