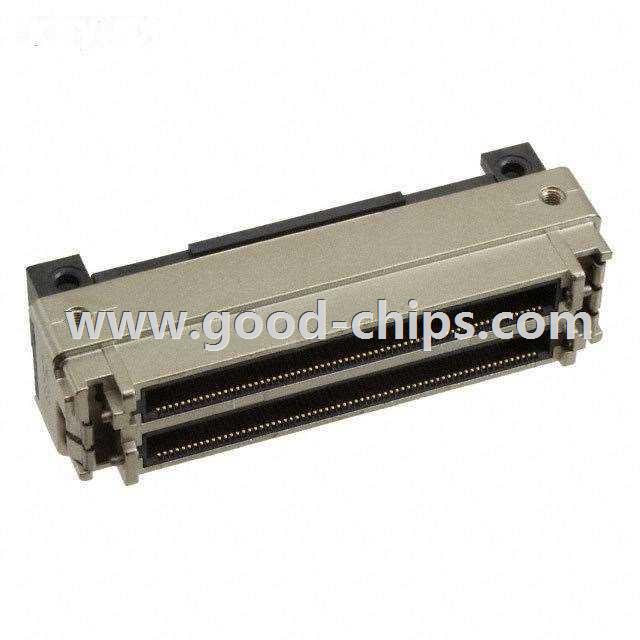

Manufacturer Part Number: | QLC260P2 |
---|---|
Manufacturer: | ITT Cannon, LLC |
Product Category: | Backplane Connectors - Specialized |
Available Quantity: | 9048 Pieces |
Unit Price: | Quote by Email |
Description: | CONN PLUG M 260POS SLDRLESS |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | QLC260P2 Datasheet |
Internal Part Number | 898-QLC260P2 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
3D Model | QLC260P2.pdf QLC260P2.stp | |
Online Catalog | QLC Series | |
Category | Connectors, Interconnects | |
Family | Backplane Connectors - Specialized | |
Manufacturer | ITT Cannon, LLC | |
Series | QLC | |
Packaging | Bulk | |
Part Status | Active | |
Connector Usage | Daughtercard | |
Connector Type | Plug, Male Pins | |
Connector Style | - | |
Number of Positions | 260 | |
Number of Positions Loaded | All | |
Pitch | 0.031" (0.80mm) | |
Number of Rows | 4 | |
Number of Columns | - | |
Mounting Type | - | |
Termination | - | |
Contact Layout, Typical | - | |
Features | Actuating Camshaft Socket, Shielding, Zero Insertion Force (ZIF) | |
Contact Finish | Gold | |
Contact Finish Thickness | 40µin (1.02µm) | |
Color | - | |
Current Rating | 0.5A | |
Material Flammability Rating | - | |
Operating Temperature | -55°C ~ 85°C | |
Voltage Rating | - | |
Standard Package | 40 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | QLC260P2 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
QLC260P2 is in stock for immediate shipping now. We are the distributor of ITT Cannon, LLC all series components. The condition of QLC260P2 is new and unused, you can buy QLC260P2 ITT Cannon, LLC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for QLC260P2.
