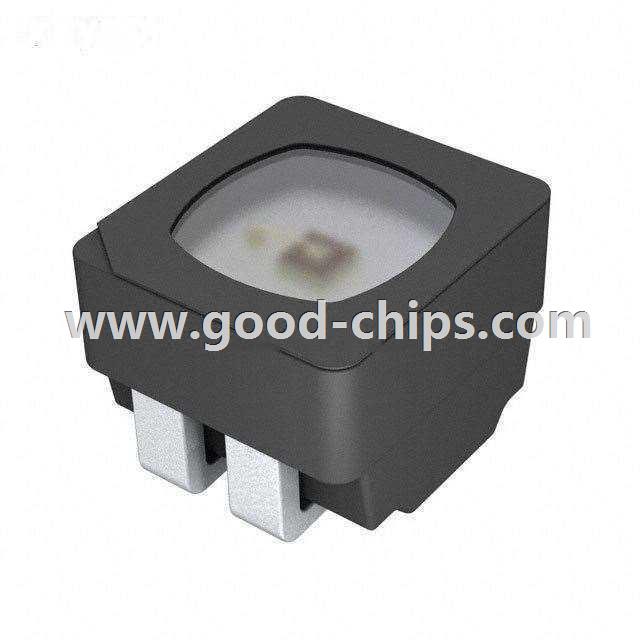

| Manufacturer Part Number: | QBLP1515B-RGBA |
|---|---|
| Manufacturer: | QT Brightek (QTB) |
| Product Category: | LED Indication - Discrete |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Red, Green, Blue (RGB) 622nm Red, 523nm Green, 467nm Blue LED Indication - Discrete 2V Red, 3.1V Green, 3.1V Blue 4-SMD, J-Lead |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 2A (4 Weeks) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | QBLP1515B-RGBA Datasheet |
| Internal Part Number | 898-QBLP1515B-RGBA | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | PLCC-4 Tri Color (RGB) Square with Flat Top LEDs | |
| Category | Optoelectronics | |
| Family | LED Indication - Discrete | |
| Manufacturer | QT Brightek (QTB) | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Color | Red, Green, Blue (RGB) | |
| Lens Color | - | |
| Lens Transparency | Diffused | |
| Millicandela Rating | 150mcd Red, 300mcd Green, 77mcd Blue | |
| Lens Style/Size | Square with Flat Top | |
| Voltage - Forward (Vf) (Typ) | 2V Red, 3.1V Green, 3.1V Blue | |
| Current - Test | 10mA Red, 10mA Green, 10mA Blue | |
| Viewing Angle | 120° | |
| Mounting Type | Surface Mount | |
| Wavelength - Dominant | 622nm Red, 523nm Green, 467nm Blue | |
| Wavelength - Peak | - | |
| Features | - | |
| Package / Case | 4-SMD, J-Lead | |
| Supplier Device Package | 4-PLCC | |
| Size / Dimension | 1.60mm L x 1.50mm W | |
| Height (Max) | 1.20mm | |
| Standard Package | 4,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | QBLP1515B-RGBA | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
QBLP1515B-RGBA is in stock for immediate shipping now. We are the distributor of QT Brightek (QTB) all series components. The condition of QBLP1515B-RGBA is new and unused, you can buy QBLP1515B-RGBA QT Brightek (QTB) with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for QBLP1515B-RGBA.
