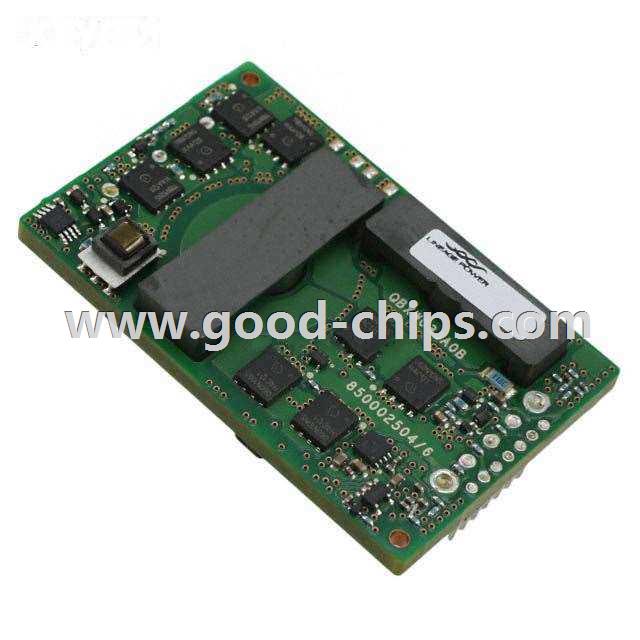

| Manufacturer Part Number: | QBDW033A0B41Z |
|---|---|
| Manufacturer: | GE Critical Power |
| Product Category: | DC DC Converters |
| Available Quantity: | 9070 Pieces |
| Unit Price: | Quote by Email |
| Description: | DC/DC CONVERTER 12V 33A |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 2A (4 Weeks) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | QBDW033A0B41Z Datasheet |
| Internal Part Number | 898-QBDW033A0B41Z | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Digital Solutions Barracuda DC-DC Power Conversion Modules | |
| Featured Product | Barracuda™ Series DC-DC Converters | |
| Manufacturer Product Page | Power Module Wizard™ | |
| Online Catalog | Barracuda™ Series QBDW033A0B | |
| Category | Power Supplies - Board Mount | |
| Family | DC DC Converters | |
| Manufacturer | GE Critical Power | |
| Series | Barracuda™ QBDW033A0B | |
| Packaging | Tray | |
| Part Status | Active | |
| Type | Intermediate Bus Converter, Digital | |
| Number of Outputs | 1 | |
| Voltage - Input (Min) | 36V | |
| Voltage - Input (Max) | 75V | |
| Voltage - Output 1 | 12V | |
| Voltage - Output 2 | - | |
| Voltage - Output 3 | - | |
| Current - Output (Max) | 33A | |
| Power (Watts) - Manufacture Series | 396W | |
| Voltage - Isolation | 2.25kV (2250V) | |
| Applications | ITE (Commercial) | |
| Features | Remote On/Off, OCP, OTP, OVP, UVLO | |
| Mounting Type | Through Hole | |
| Package / Case | 8-DIP Module, 1/4 Brick | |
| Size / Dimension | 2.30" L x 1.45" W x 0.46" H (58.4mm x 36.8mm x 11.7mm) | |
| Operating Temperature | -40°C ~ 85°C | |
| Efficiency | 95.3% | |
| Power (Watts) - Max | 396W | |
| Standard Package | 24 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | QBDW033A0B41Z | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
QBDW033A0B41Z is in stock for immediate shipping now. We are the distributor of GE Critical Power all series components. The condition of QBDW033A0B41Z is new and unused, you can buy QBDW033A0B41Z GE Critical Power with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for QBDW033A0B41Z.
