| Manufacturer Part Number: | Q8R3CXXR24E |
|---|---|
| Manufacturer: | Apem Inc. |
| Product Category: | Panel Indicators, Pilot Lights |
| Available Quantity: | 9098 Pieces |
| Unit Price: | Quote by Email |

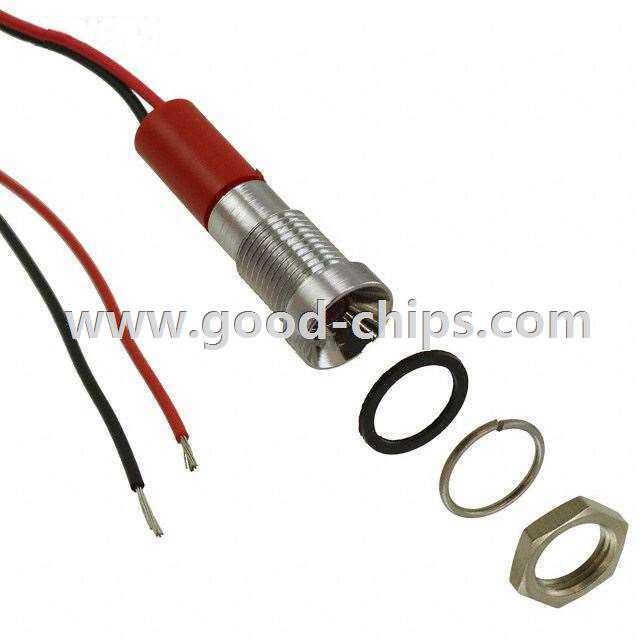

| Description: | LED Panel Indicator Red Diffused 100° 24V 20mA Round with Domed Top, 5mm (T-1 3/4) Wire Leads - 7.87" (200.00mm) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | Q8R3CXXR24E Datasheet |
| Internal Part Number | 898-Q8R3CXXR24E | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | LED Indicators Overview | |
| Featured Product | Superbright LED Indicators | |
| Online Catalog | Q Series | |
| Category | Optoelectronics | |
| Family | Panel Indicators, Pilot Lights | |
| Manufacturer | Apem Inc. | |
| Series | Q Series | |
| Part Status | Active | |
| Type | LED | |
| Lamp Color | Red | |
| Lens Color | Red | |
| Lens Transparency | Diffused | |
| Ratings | DC | |
| Voltage | 24V | |
| Current | 20mA | |
| Panel Cutout Shape | Round | |
| Panel Cutout Dimensions | 0.31" (7.87mm) | |
| Lens Style/Size | Round with Domed Top, 5mm (T-1 3/4) | |
| Millicandela Rating | 100mcd | |
| Wavelength - Peak | - | |
| Viewing Angle | 100° | |
| Termination Style | Wire Leads - 7.87" (200.00mm) | |
| Ingress Protection | IP67 | |
| Features | - | |
| Standard Package | 25 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | Q8R3CXXR24E | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
Q8R3CXXR24E is in stock for immediate shipping now. We are the distributor of Apem Inc. all series components. The condition of Q8R3CXXR24E is new and unused, you can buy Q8R3CXXR24E Apem Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for Q8R3CXXR24E.
