| Manufacturer Part Number: | Q6F1BXXR24E |
|---|---|
| Manufacturer: | Apem Inc. |
| Product Category: | Panel Indicators, Pilot Lights |
| Available Quantity: | 9136 Pieces |
| Unit Price: | Quote by Email |

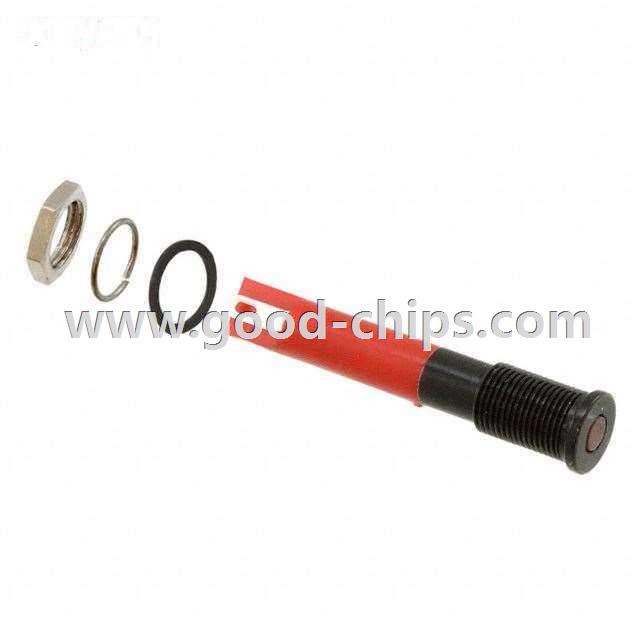

| Description: | LED Panel Indicator Red Diffused 100° 24V 20mA Round with Flat Top, 3mm (T-1) Solder Lug |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | Q6F1BXXR24E Datasheet |
| Internal Part Number | 898-Q6F1BXXR24E | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | LED Indicators Overview | |
| Featured Product | Superbright LED Indicators | |
| Online Catalog | Q Series | |
| Category | Optoelectronics | |
| Family | Panel Indicators, Pilot Lights | |
| Manufacturer | Apem Inc. | |
| Series | Q Series | |
| Part Status | Active | |
| Type | LED | |
| Lamp Color | Red | |
| Lens Color | Red | |
| Lens Transparency | Diffused | |
| Ratings | DC | |
| Voltage | 24V | |
| Current | 20mA | |
| Panel Cutout Shape | Round | |
| Panel Cutout Dimensions | 0.24" (6.10mm) | |
| Lens Style/Size | Round with Flat Top, 3mm (T-1) | |
| Millicandela Rating | 10mcd | |
| Wavelength - Peak | - | |
| Viewing Angle | 100° | |
| Termination Style | Solder Lug | |
| Ingress Protection | IP67 | |
| Features | - | |
| Standard Package | 25 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | Q6F1BXXR24E | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
Q6F1BXXR24E is in stock for immediate shipping now. We are the distributor of Apem Inc. all series components. The condition of Q6F1BXXR24E is new and unused, you can buy Q6F1BXXR24E Apem Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for Q6F1BXXR24E.
