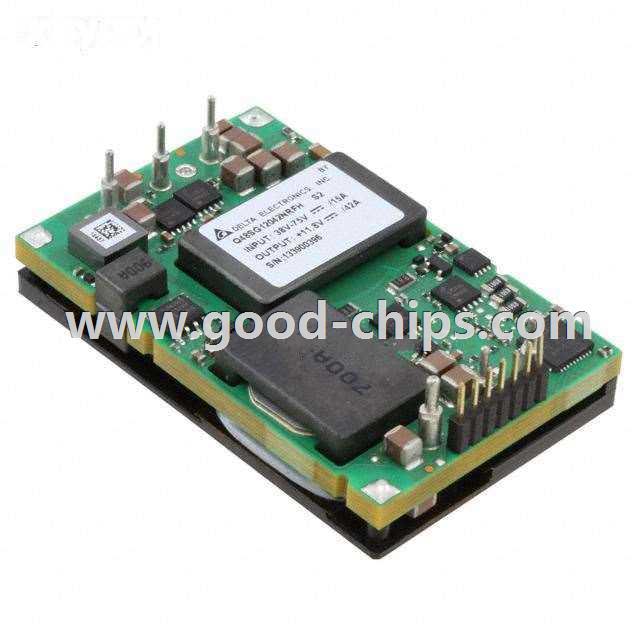

| Manufacturer Part Number: | Q48SG12042NRFH |
|---|---|
| Manufacturer: | Delta Electronics |
| Product Category: | DC DC Converters |
| Available Quantity: | 9221 Pieces |
| Unit Price: | Quote by Email |
| Description: | DC/DC CONVERTER 12V 500W |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | Q48SG12042NRFH Datasheet |
| Internal Part Number | 898-Q48SG12042NRFH | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | High Efficiency Isolated DC/DC Converters Isolated DC/DC Converter Design Considerations | |
| Featured Product | DC/DC Converters – Delta Product Groups Isolated Open-Frame DC/DC Converters | |
| Online Catalog | Delphi Q48SG Series | |
| Category | Power Supplies - Board Mount | |
| Family | DC DC Converters | |
| Manufacturer | Delta Electronics | |
| Series | Delphi Q48SG | |
| Packaging | Bulk | |
| Part Status | Active | |
| Type | Isolated Module, Digital | |
| Number of Outputs | 1 | |
| Voltage - Input (Min) | 38V | |
| Voltage - Input (Max) | 75V | |
| Voltage - Output 1 | 11.8V | |
| Voltage - Output 2 | - | |
| Voltage - Output 3 | - | |
| Current - Output (Max) | 42A | |
| Power (Watts) - Manufacture Series | 500W | |
| Voltage - Isolation | 2.25kV (2250V) | |
| Applications | ITE (Commercial) | |
| Features | Remote On/Off, OCP, OTP, OVP, UVLO | |
| Mounting Type | Through Hole | |
| Package / Case | 13-DIP Module, 1/4 Brick | |
| Size / Dimension | 2.30" L x 1.45" W x 0.50" H (58.4mm x 36.8mm x 12.7mm) | |
| Operating Temperature | -40°C ~ 85°C | |
| Efficiency | 95.3% | |
| Power (Watts) - Max | 500W | |
| Standard Package | 15 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | Q48SG12042NRFH | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
Q48SG12042NRFH is in stock for immediate shipping now. We are the distributor of Delta Electronics all series components. The condition of Q48SG12042NRFH is new and unused, you can buy Q48SG12042NRFH Delta Electronics with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for Q48SG12042NRFH.
