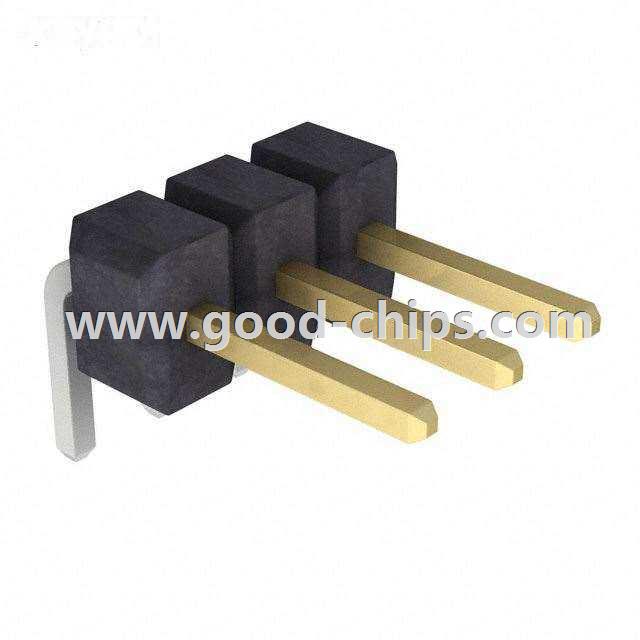

PZC03SBAN

PZC03SBAN
Manufacturer Part Number:PZC03SBAN
Manufacturer:
Product Category:Rectangular Connectors - Headers, Male Pins
Available Quantity:9010 Pieces
Unit Price:Quote by Email
Description:3 Positions Header, Unshrouded Connector 0.100" (2.54mm) Through Hole, Right Angle Gold
Lead Free Status / RoHS Status:Contains lead / RoHS non-compliant
Moisture Sensitivity Level (MSL):
Production Status (Lifecycle):Obsolete / Discontinued
Delivery Time:1-2 Days
Date Code (D/C):New
Datasheet Download: PZC03SBAN Datasheet
PZC03SBAN´s Parameters
Internal Part Number898-PZC03SBAN
Manufacturer Lead time6-8 weeks
ConditionNew & Unused, Original Sealed
CategoryConnectors, Interconnects
FamilyRectangular Connectors - Headers, Male Pins
ManufacturerSullins Connector Solutions
Series-
PackagingBulk
Part StatusObsolete
Contact TypeMale Pin
Connector TypeHeader, Unshrouded
Number of Positions3
Number of Positions LoadedAll
Pitch0.100" (2.54mm)
Number of Rows1
Row Spacing-
Contact Mating Length0.230" (5.84mm)
Mounting TypeThrough Hole, Right Angle
TerminationSolder
Fastening Type-
Features-
Contact FinishGold
Contact Finish Thickness10µin (0.25µm)
ColorBlack
Standard Package 1
Weight0.001 KG
ApplicationEmail for details
Replacement PartPZC03SBAN
Country of OriginUSA / JAPAN / Philippines / Malaysia
MOQ1 Piece
Picture / Image / PhotoSend via email

PZC03SBAN is in stock for immediate shipping now. We are the distributor of Sullins Connector Solutions all series components. The condition of PZC03SBAN is new and unused, you can buy PZC03SBAN Sullins Connector Solutions with us at a very low price and quick delivery.

Please kindly send us an email if you have any demands for PZC03SBAN.
