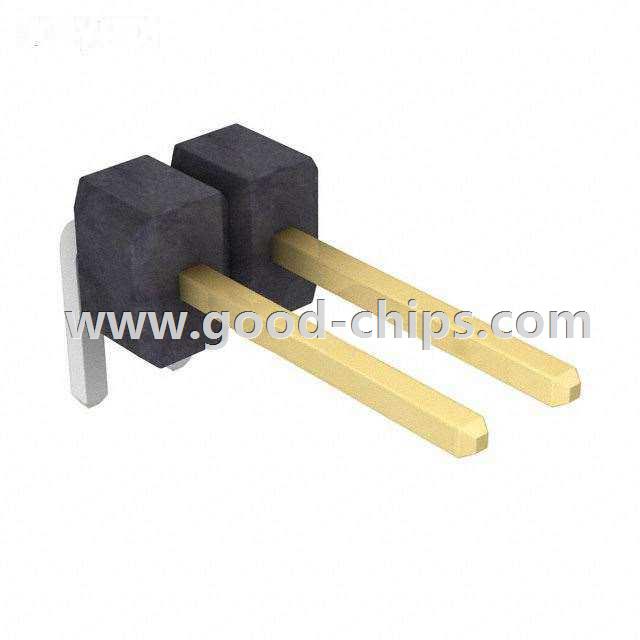

PZC02SGAN

PZC02SGAN
Manufacturer Part Number:PZC02SGAN
Manufacturer:
Product Category:Rectangular Connectors - Headers, Male Pins
Available Quantity:9010 Pieces
Unit Price:Quote by Email
Description:2 Positions Header, Unshrouded Connector 0.100" (2.54mm) Through Hole, Right Angle Gold
Lead Free Status / RoHS Status:Contains lead / RoHS non-compliant
Moisture Sensitivity Level (MSL):
Production Status (Lifecycle):Obsolete / Discontinued
Delivery Time:1-2 Days
Date Code (D/C):New
Datasheet Download: PZC02SGAN Datasheet
PZC02SGAN´s Parameters
Internal Part Number898-PZC02SGAN
Manufacturer Lead time6-8 weeks
ConditionNew & Unused, Original Sealed
CategoryConnectors, Interconnects
FamilyRectangular Connectors - Headers, Male Pins
ManufacturerSullins Connector Solutions
Series-
PackagingBulk
Part StatusObsolete
Contact TypeMale Pin
Connector TypeHeader, Unshrouded
Number of Positions2
Number of Positions LoadedAll
Pitch0.100" (2.54mm)
Number of Rows1
Row Spacing-
Contact Mating Length0.318" (8.08mm)
Mounting TypeThrough Hole, Right Angle
TerminationSolder
Fastening Type-
Features-
Contact FinishGold
Contact Finish Thickness10µin (0.25µm)
ColorBlack
Standard Package 1
Weight0.001 KG
ApplicationEmail for details
Replacement PartPZC02SGAN
Country of OriginUSA / JAPAN / Philippines / Malaysia
MOQ1 Piece
Picture / Image / PhotoSend via email

PZC02SGAN is in stock for immediate shipping now. We are the distributor of Sullins Connector Solutions all series components. The condition of PZC02SGAN is new and unused, you can buy PZC02SGAN Sullins Connector Solutions with us at a very low price and quick delivery.

Please kindly send us an email if you have any demands for PZC02SGAN.
