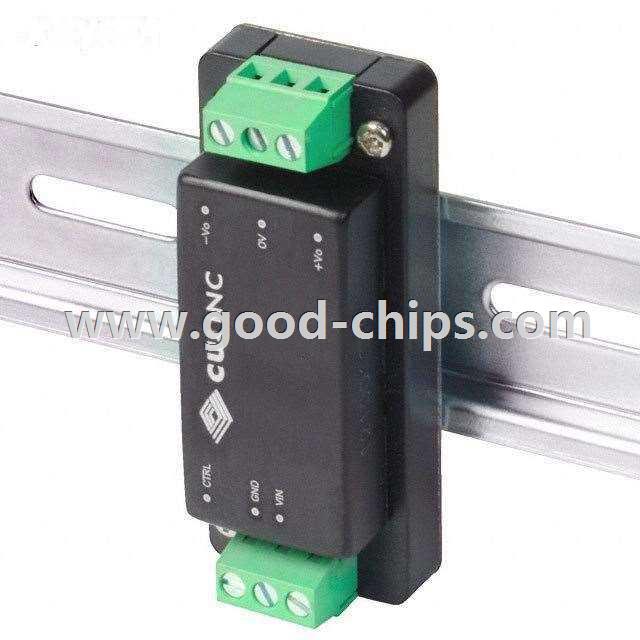

Manufacturer Part Number: | PYB15-Q24-S5-DIN |
---|---|
Manufacturer: | CUI Inc. |
Product Category: | DC DC Converters |
Available Quantity: | 9142 Pieces |
Unit Price: | Quote by Email |
Description: | DC/DC CONVERTER 5V 15W DIN |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | PYB15-Q24-S5-DIN Datasheet |
Internal Part Number | 898-PYB15-Q24-S5-DIN | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | Reliability Considerations for Power Supplies Power Supply Safety Standards, Agencies and Marks | |
RoHS Information | PYB15-DIN Series Cert of Compliance | |
Featured Product | PYB Series High-Efficiency 10 ~ 30 W DC-DC Converters Low -Power DIN Rail DC-DC Converters Industrial Applications | |
3D Model | PYB15-Q24-S5-DIN | |
Online Catalog | PYB15-DIN Series | |
Category | Power Supplies - External/Internal (Off-Board) | |
Family | DC DC Converters | |
Manufacturer | CUI Inc. | |
Series | PYB15-DIN | |
Packaging | Bulk | |
Part Status | Active | |
Type | Isolated | |
Voltage - Input | 9 ~ 36 V | |
Output | 5V | |
Number of Outputs | 1 | |
Output - 1 @ Current (Max) | 5 VDC @ 3A | |
Output - 2 @ Current (Max) | - | |
Output - 3 @ Current (Max) | - | |
Output - 4 @ Current (Max) | - | |
Power (Watts) | 15W | |
Applications | - | |
Mounting Type | DIN Rail | |
Operating Temperature | -40°C ~ 85°C | |
Efficiency | 88% | |
Package / Case | Module | |
Size / Dimension | 2.99" L x 1.24" W x 0.87" H (76.0mm x 31.5mm x 22.2mm) | |
Power (Watts) - Max | 15W | |
Approvals | EN, IEC | |
Standard Package | 40 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | PYB15-Q24-S5-DIN | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
PYB15-Q24-S5-DIN is in stock for immediate shipping now. We are the distributor of CUI Inc. all series components. The condition of PYB15-Q24-S5-DIN is new and unused, you can buy PYB15-Q24-S5-DIN CUI Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for PYB15-Q24-S5-DIN.
