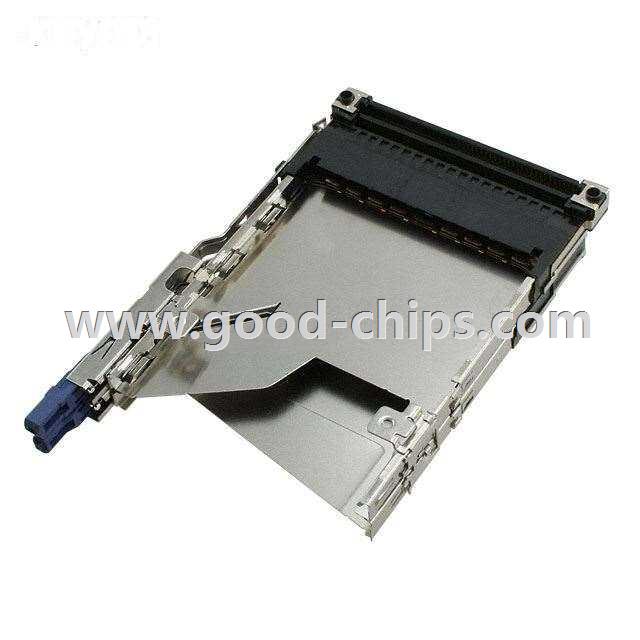

| Manufacturer Part Number: | PX20-FSR15N-A2 |
|---|---|
| Manufacturer: | JAE Electronics |
| Product Category: | Memory Connectors - PC Card Sockets |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 68, 68 Position Card Connector PCMCIA - ExpressCard™ - Type I, II Surface Mount, Right Angle Gold |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | PX20-FSR15N-A2 Datasheet |
| Internal Part Number | 898-PX20-FSR15N-A2 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Connectors, Interconnects | |
| Family | Memory Connectors - PC Card Sockets | |
| Manufacturer | JAE Electronics | |
| Series | PX20 | |
| Packaging | Tray | |
| Part Status | Obsolete | |
| Card Type | PCMCIA - ExpressCard™ - Type I, II | |
| Number of Positions | 68, 68 | |
| Connector Type | Stacked Connector and Ejector | |
| Insertion, Removal Method | Push In, Push Out | |
| Ejector Side | Right | |
| Mounting Type | Surface Mount, Right Angle | |
| Features | - | |
| Height Above Board | 0.528" (13.40mm) | |
| Mounting Feature | Normal, Standard - Top | |
| Contact Finish | Gold | |
| Contact Finish Thickness | 12µin (0.30µm) | |
| Standard Package | 15 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | PX20-FSR15N-A2 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
PX20-FSR15N-A2 is in stock for immediate shipping now. We are the distributor of JAE Electronics all series components. The condition of PX20-FSR15N-A2 is new and unused, you can buy PX20-FSR15N-A2 JAE Electronics with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for PX20-FSR15N-A2.
