PX0596/48

PX0596/48
Manufacturer Part Number:PX0596/48
Manufacturer:
Product Category:Power Entry Connectors - Inlets, Outlets, Modules
Available Quantity:9010 Pieces
Unit Price:Quote by Email

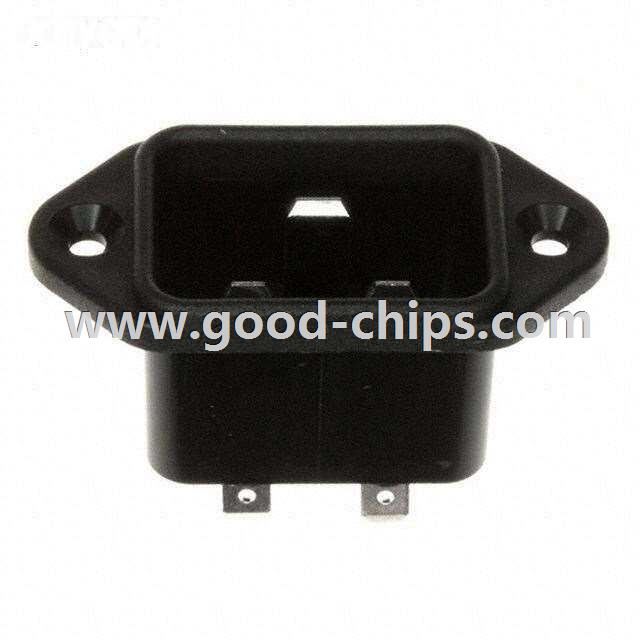

Description:Power Entry Connector Receptacle, Male Blades IEC 320-C20 Panel Mount, Flange
Lead Free Status / RoHS Status:Lead free / RoHS Compliant
Moisture Sensitivity Level (MSL):1 (Unlimited)
Production Status (Lifecycle):In Production
Delivery Time:1-2 Days
Date Code (D/C):New
Datasheet Download: PX0596/48 Datasheet
PX0596/48´s Parameters
Internal Part Number898-PX0596/48
Manufacturer Lead time6-8 weeks
ConditionNew & Unused, Original Sealed
Product Training ModulesIEC Connectors Overview
CategoryConnectors, Interconnects
FamilyPower Entry Connectors - Inlets, Outlets, Modules
ManufacturerBulgin
SeriesPX
PackagingBulk
Part StatusActive
Connector StyleIEC 320-C20
Connector TypeReceptacle, Male Blades
Current - IEC16A
Voltage - IEC250VAC
Current - UL20A
Voltage - UL250VAC
Filter TypeUnfiltered - Commercial
FuseNo
Number of Positions3
Mounting TypePanel Mount, Flange
TerminationQuick Connect - 0.189" (4.8mm)
Switch Features-
Features-
Fuse Holder, Drawer-
Panel Cutout DimensionsRectangular - 32.30mm x 24.30mm
Panel Thickness-
Material Flammability RatingUL94 V-0
Ingress Protection-
ApprovalsCSA, ENEC, UL, VDE
Standard Package 50
Weight0.001 KG
ApplicationEmail for details
Replacement PartPX0596/48
Country of OriginUSA / JAPAN / Philippines / Malaysia
MOQ1 Piece
Picture / Image / PhotoSend via email

PX0596/48 is in stock for immediate shipping now. We are the distributor of Bulgin all series components. The condition of PX0596/48 is new and unused, you can buy PX0596/48 Bulgin with us at a very low price and quick delivery.

Please kindly send us an email if you have any demands for PX0596/48.
