Manufacturer Part Number: | PX0580/PC |
---|---|
Manufacturer: | Bulgin |
Product Category: | Power Entry Connectors - Inlets, Outlets, Modules |
Available Quantity: | 10940 Pieces |
Unit Price: | Quote by Email |

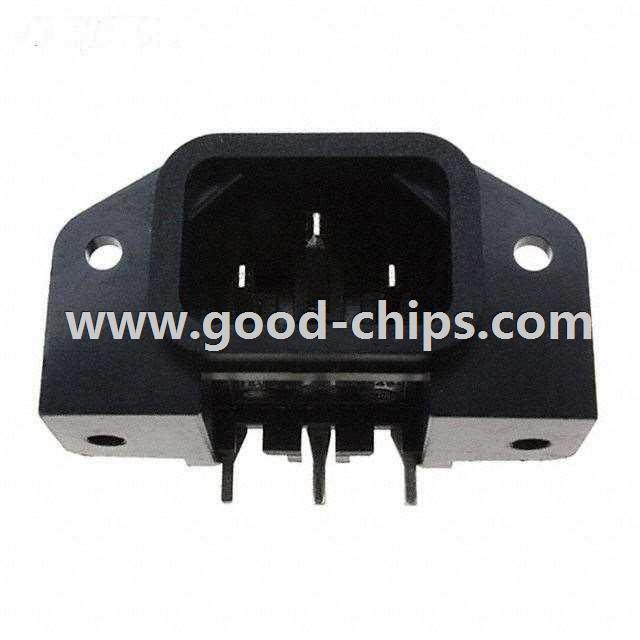

Description: | Power Entry Connector Receptacle, Male Blades IEC 320-C14 Panel Mount, Flange; Through Hole, Right Angle |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | PX0580/PC Datasheet |
Internal Part Number | 898-PX0580/PC | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | IEC Connectors Overview | |
Online Catalog | Power Entry Receptacles - Bulgin | |
Category | Connectors, Interconnects | |
Family | Power Entry Connectors - Inlets, Outlets, Modules | |
Manufacturer | Bulgin | |
Series | PX | |
Packaging | Bulk | |
Part Status | Active | |
Connector Style | IEC 320-C14 | |
Connector Type | Receptacle, Male Blades | |
Current - IEC | 10A | |
Voltage - IEC | 250VAC | |
Current - UL | 15A | |
Voltage - UL | 250VAC | |
Filter Type | Unfiltered - Commercial | |
Fuse | No | |
Number of Positions | 3 | |
Mounting Type | Panel Mount, Flange; Through Hole, Right Angle | |
Termination | Solder | |
Switch Features | - | |
Features | - | |
Fuse Holder, Drawer | - | |
Panel Cutout Dimensions | Rectangular - 30.25mm x 22.48mm | |
Panel Thickness | 0.126" (3.20mm) | |
Material Flammability Rating | UL94 V-0 | |
Ingress Protection | - | |
Approvals | CSA, ENEC, UL, VDE | |
Standard Package | 100 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | PX0580/PC | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
PX0580/PC is in stock for immediate shipping now. We are the distributor of Bulgin all series components. The condition of PX0580/PC is new and unused, you can buy PX0580/PC Bulgin with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for PX0580/PC.
